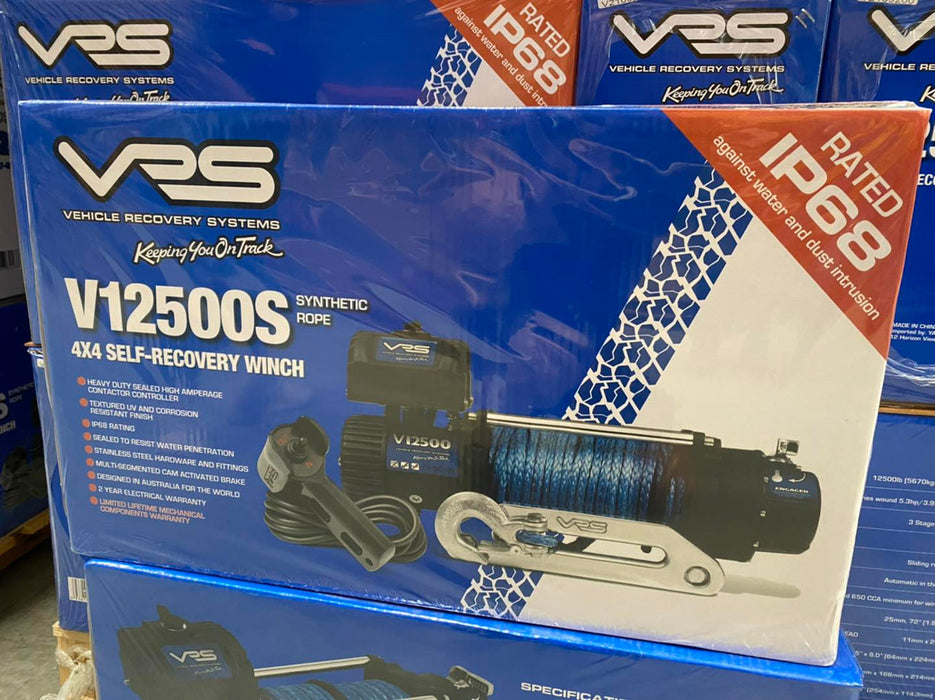

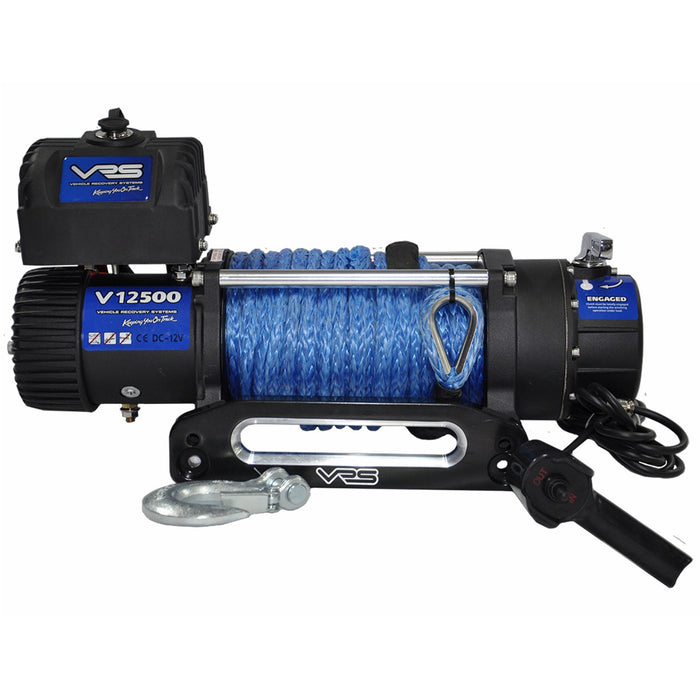

VRS 12500lb Electric Winch 12V With Synthetic Rope

When you’re out there in the thick of it, you need some serious machinery on your side. With an impressive 5670kgs of pulling power and fast line speed under load, the VRS 12500lb winch is the one vehicle recovery winch no driver, from the novice to the serious off-roader, should be without. Even in the most extreme conditions, this tough nut has the muscle to haul your vehicle back on track-fast. Get serious with your safety and get yourself a VRS winch.

• IP68 Water & Dust rating
• Textured UV and corrosion resistant finish
• Sealed to resist water penetration
• Stainless steel hardware and fittings
• Heavy duty sealed high amperage contactor controller
• Multi-segmented cam activated brake
• Powerful pulling power
• Fast line speed under load
• Designed in Australia for the World

SPECIFICATIONS

Line Pull	12,500lb / 5,670kg
Motor 12V	Series Wound 5.3hp/3.9kw 12v DC
Gear Train	3 stage planetary gears
Gear Ratio	273 : 1
Freespool	Sliding ring gear
Brake	Automatic, in the drum
Battery	Recommended 650 CCA minimum for winching
Battery Lead	25mm, 72″ (1.83M
Synthetic Rope Size	11mm x 26m
Drum Size	2.5″ x 9.0″ (64mm x 224mm)
Mounting Bolt Pattern	10″ x 4.5″ (254mm x 114.3mm)
Dimensions	23″ x 6.6″x 8.4″ (552mm x 168mm x 214mm)

LINE PULL AND ROPE CAPACITY

Layer of wire rope	Line Pull kg / lb	Total Rope on the Drum m/ft
1st Layer	5,670 / 12,500	5.4 / 17.6
2nd Layer	4,536 / 10,000	11.4 / 37
3rd Layer	3,629/ 8,600	19.4 / 63
4th Layer	3,402 / 7,500	26 / 85

LINE SPEED AND AMP. DRAW*

Line Pull kg/lb	Line Speed mpm/fpm	Amp. Draw 12V
No Load	10.8 / 35.4	80
1,814 / 4,000	2.8 / 9.19	180
2,722 / 6,000	2.3 / 7.55	210
3,629 / 8,000	2.1 / 6.89	250
4,536 / 10,000	1.9 / 6.23	290
5,670 / 12500	1.7 / 5.58	340



STANDARD ACCESSORIES

• Detachable Contactor Pack
• Remote control
• Synthetic Rope with Hook
• Black Hawse fairlead
• 1.83m (6′) 25mm battery lead
• Handsaver strap
