Carbon 12K 12000lb Winch - Synthetic Rope & Mega Pro Hook

Save $50.95
Original Price $1,129.95
Current Price $1,079.00

Notify me when back in stock

Why Buy From Adventure Warehouse?

✅ FAST SHIPPING - ORDERS SHIPPED AUS WIDE WITHIN 24 HOURS

✅ WE'RE HERE TO HELP - SPEAK TO A REAL PERSON

✅ EASY RETURNS - 30 DAYS, NO RETURN FEES

✅ PRICE GUARANTEE - NOBODY BEATS OUR PRICES

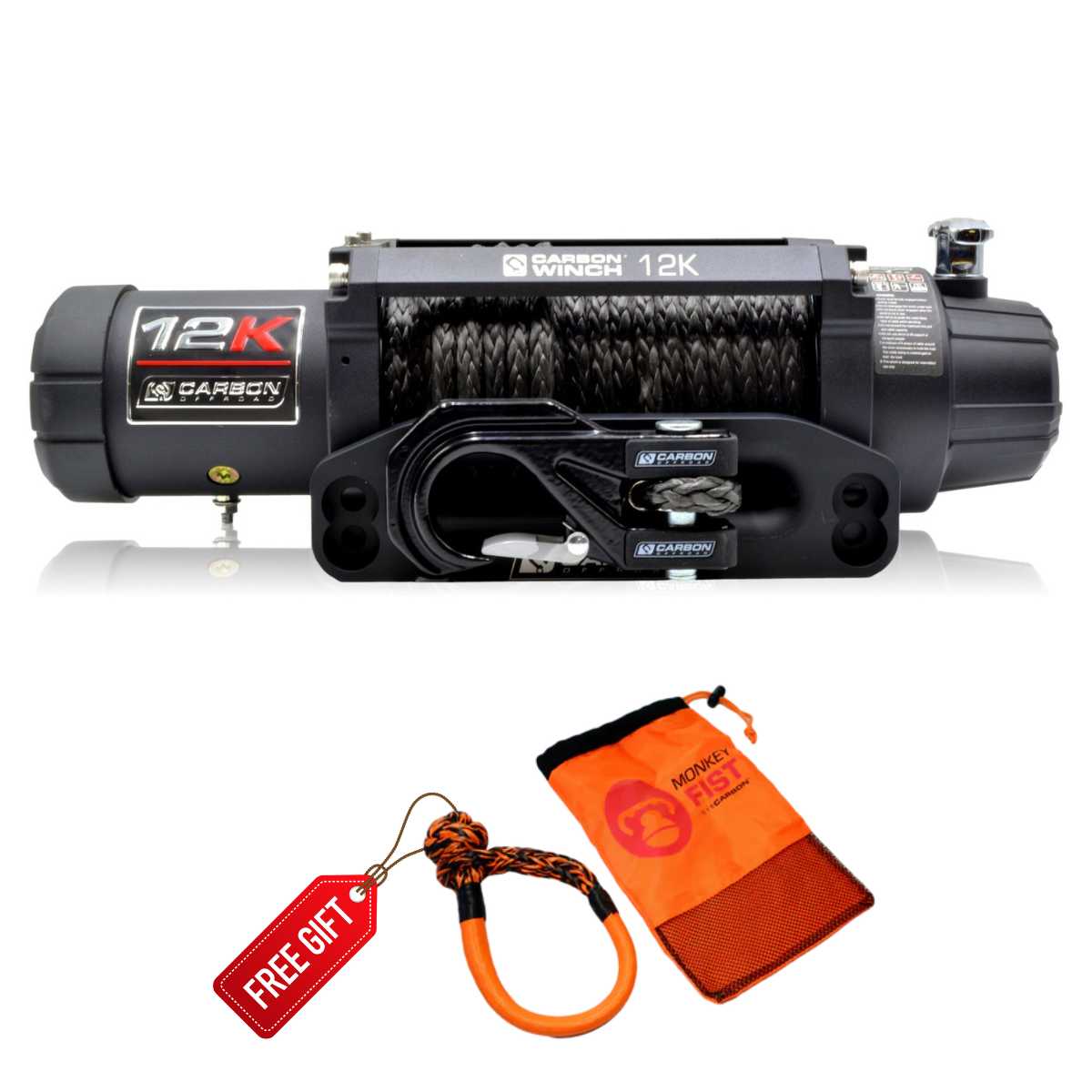

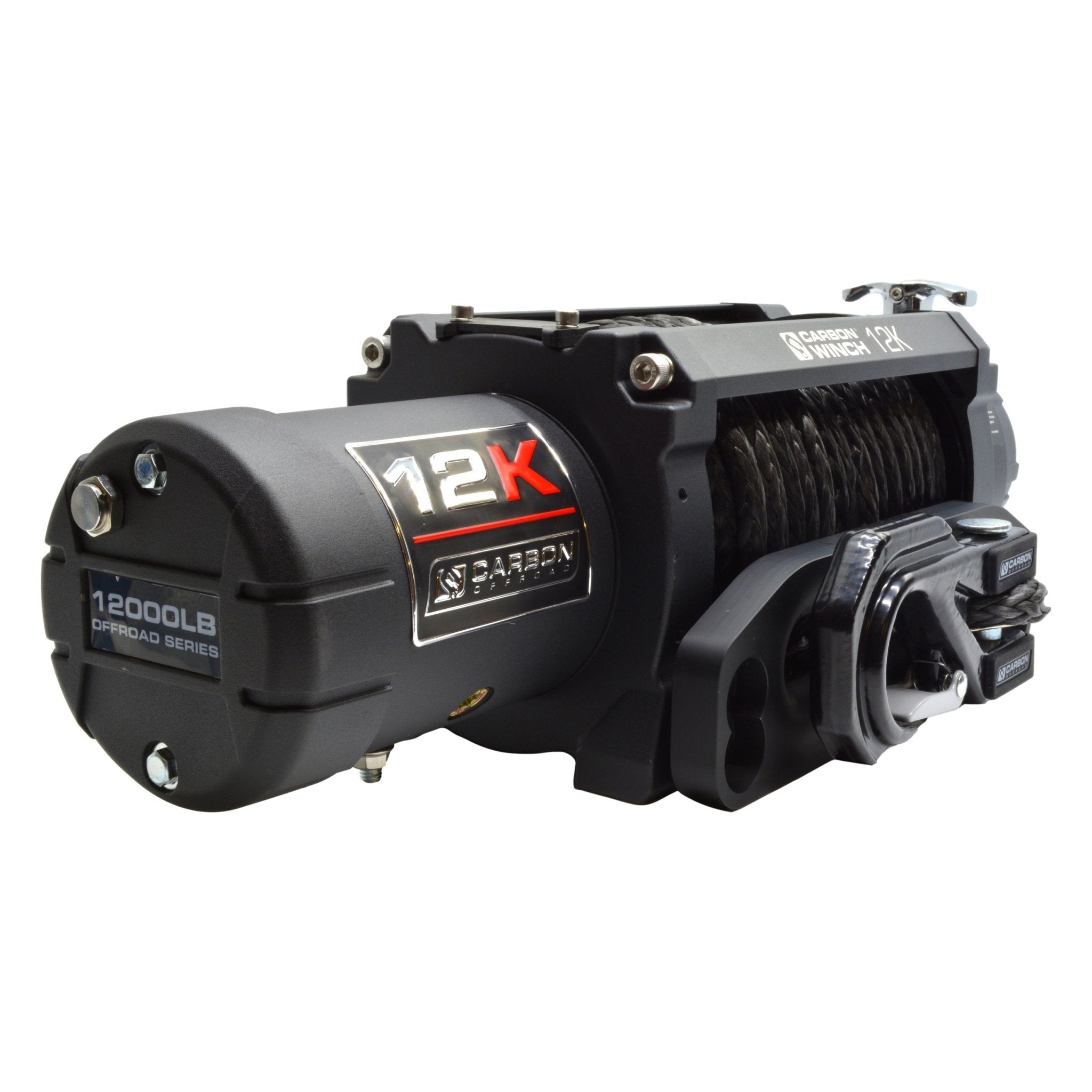

carbon soft shackle bonus offerCarbon 12K 12000lb Winch With Synthetic Rope & Mega Pro Hook

Reliable Performance, Anywhere, Anytime: Powered by a reliable 6.2HP motor and a robust 3-stage planetary gearbox, the Carbon 12k 1200lb Winch guarantees performance when you need it most. With both wired and wireless remotes included, recovery becomes a breeze from the comfort of your driver's seat.

Lightest Winch In It’s Class: The Carbon 12K Winch stands proudly as the lightest winch in its class, setting a new benchmark for efficiency and ease. Weighing in at a mere 19.0kg, this powerhouse defies expectations, minimising the weight on your rig’s front end without compromising on strength.

The lightweight design not only enhances the overall performance of your vehicle but also simplifies installation and handling, making it the go-to choice for those who seek a winch that delivers exceptional power without unnecessary bulk.

Australian Design, Global Toughness: Designed and tested right here in Australia by an Aussie offroad business for the harshest conditions, the Carbon Winch boasts a lifetime mechanical warranty, a 5-year electrical warranty, and a 5-year water ingress protection warranty. Backed by a warehouse of replacement parts in Australia, it's your trusty companion for every adventure.

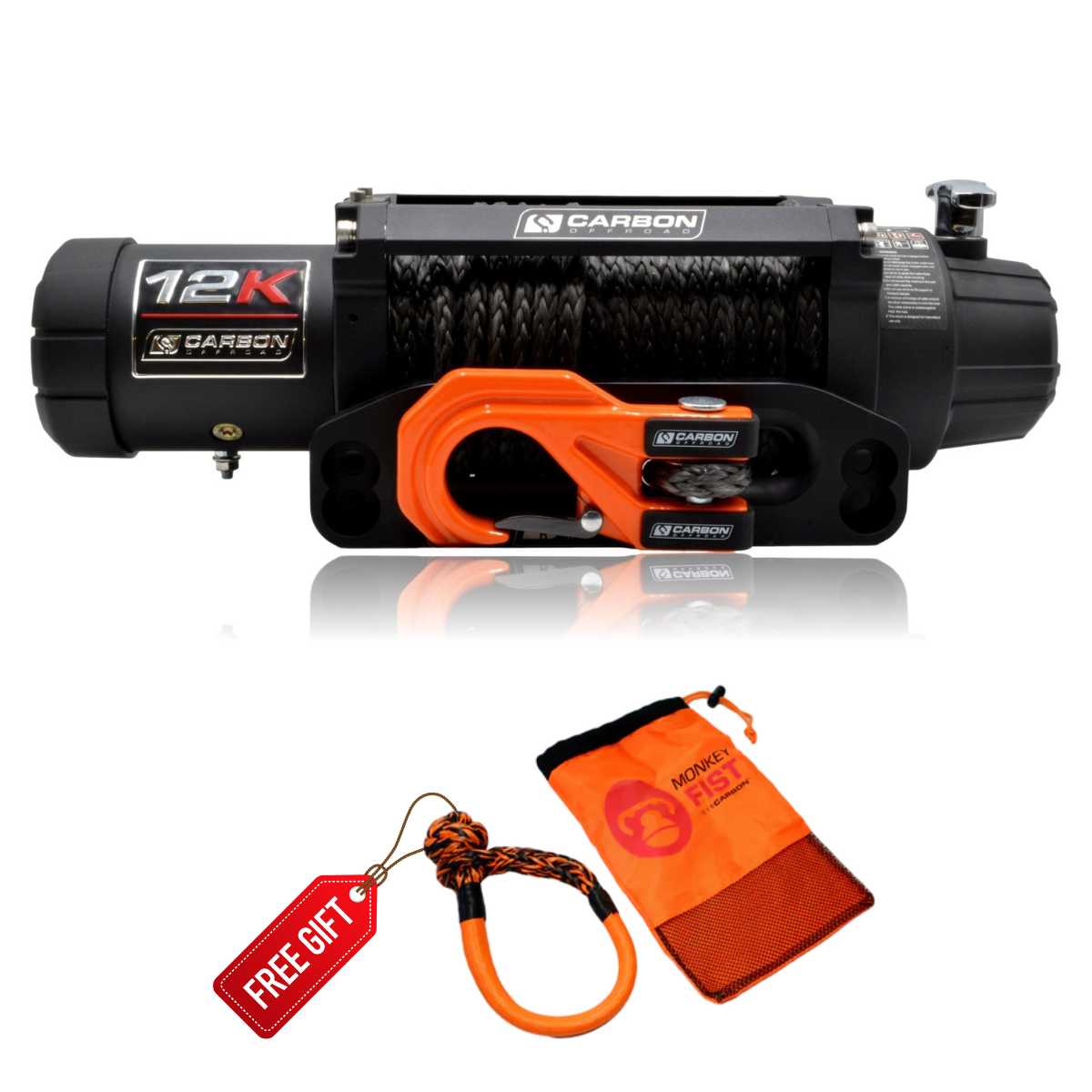

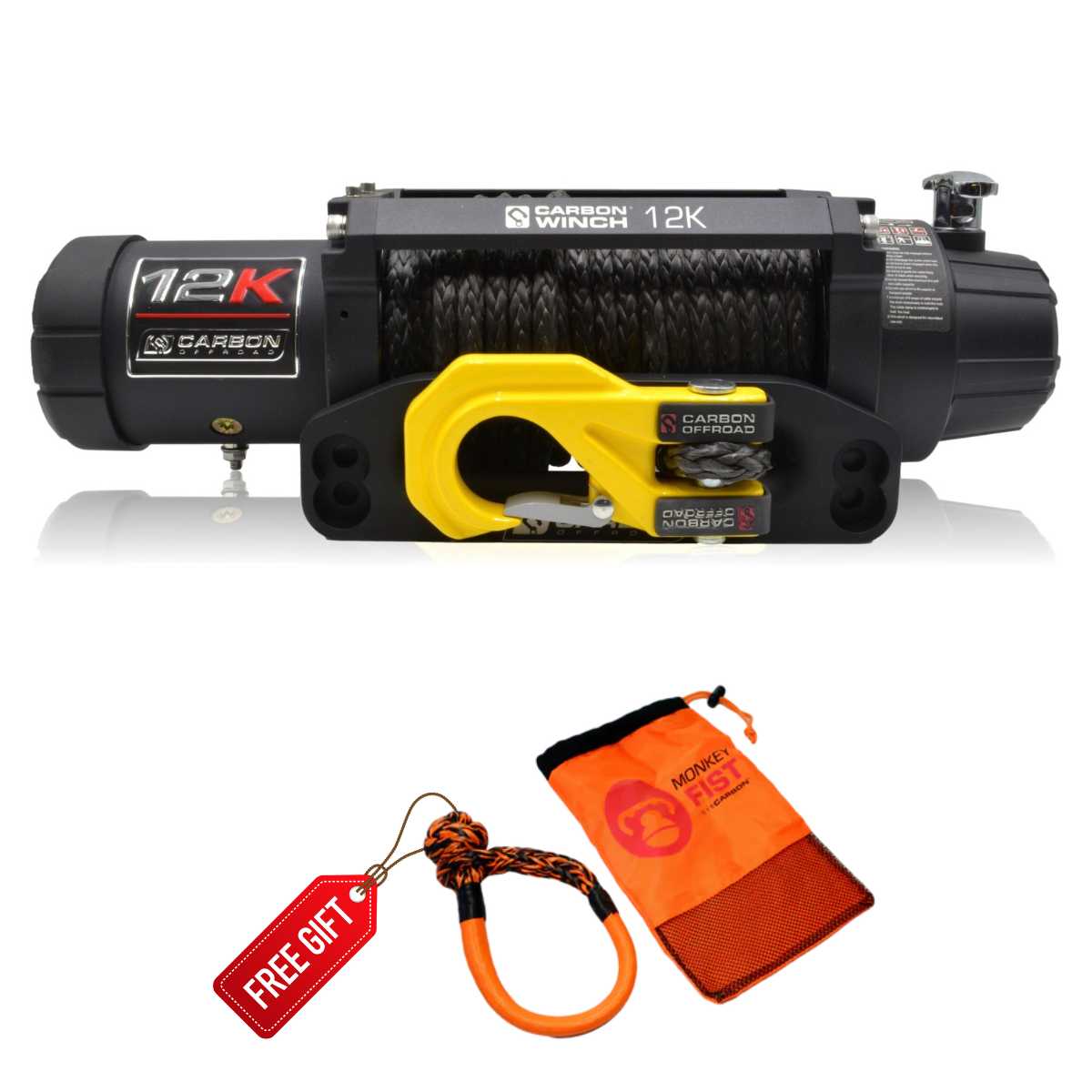

choose from 5 winch hook colours

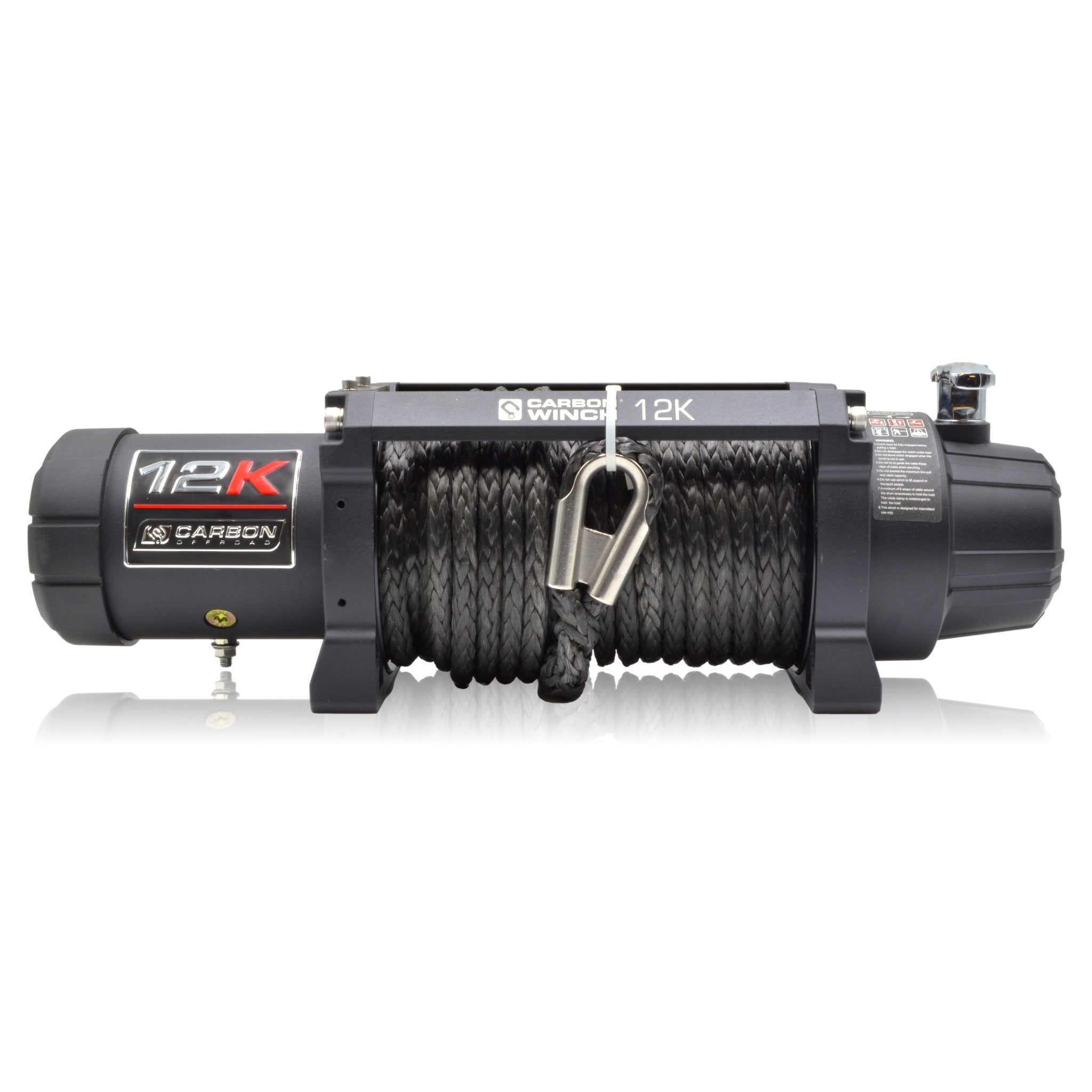

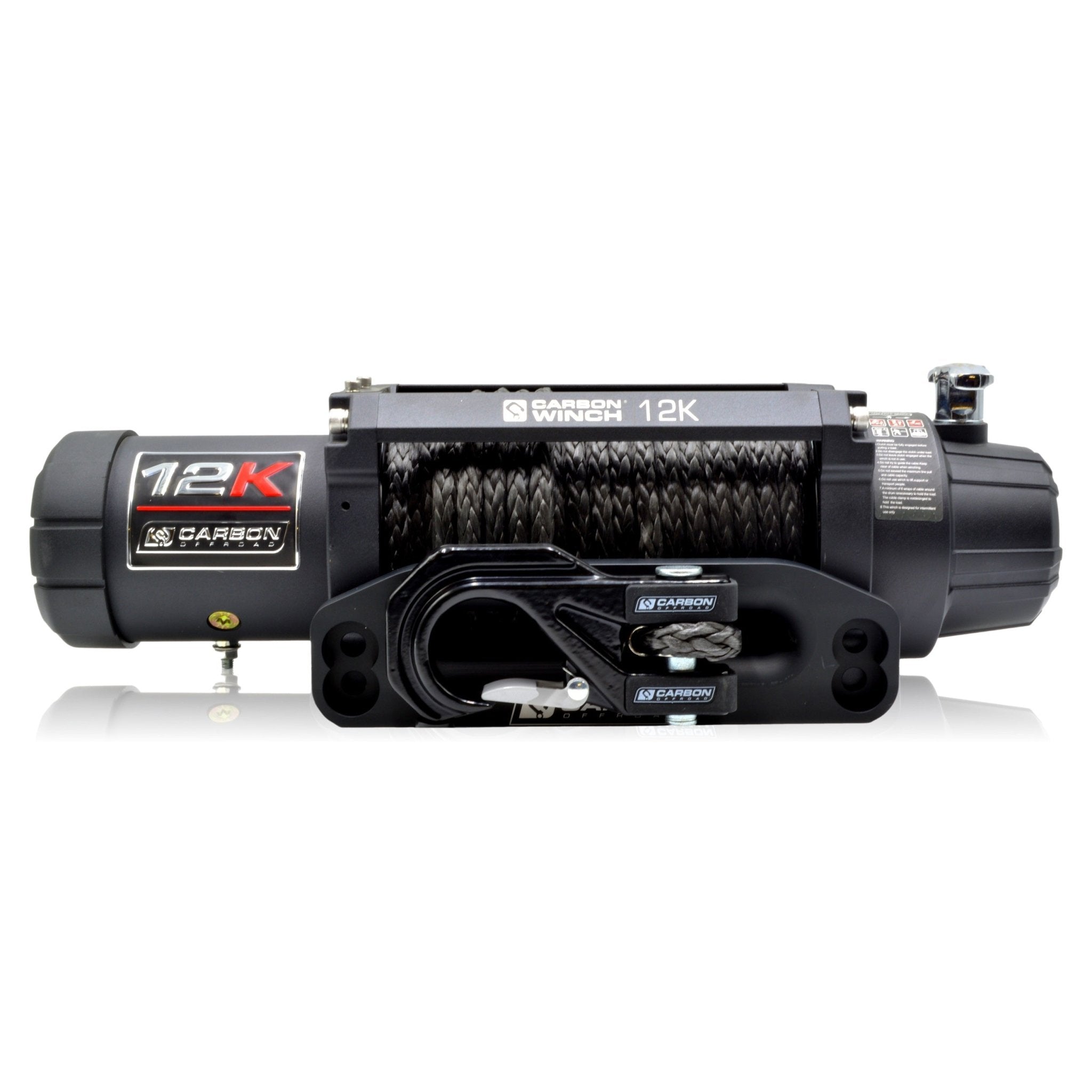

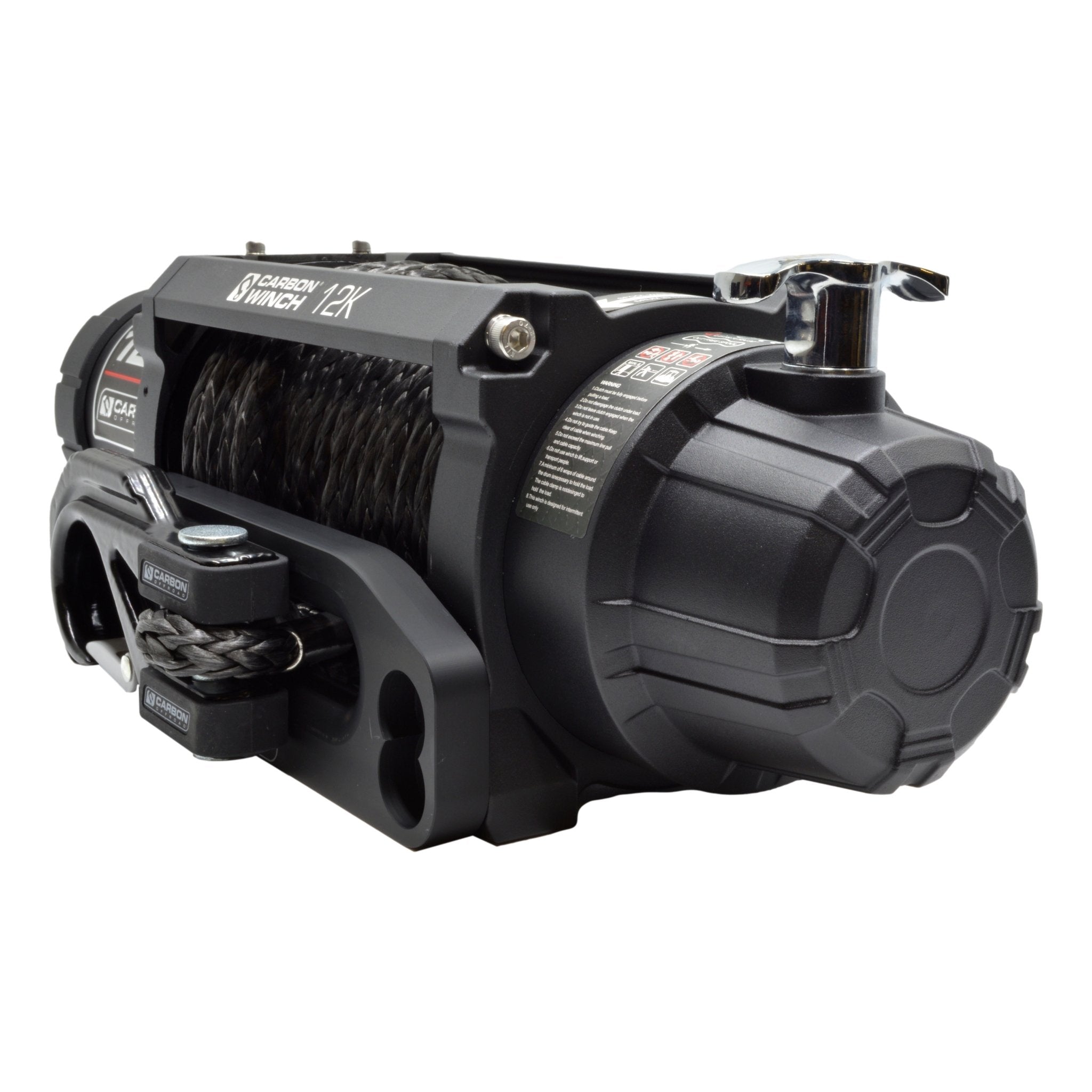

All New Design: The Carbon Winch 12K, now in an all-black design, with a sleek black design, black synthetic rope and your choice of hook colour, the Carbon 12k 1200lb winch brings a touch of Aussie grit to your 4x4. Boasting a 12000lb pulling power, this 12v electric winch is the lightest in its class, setting a new standard for toughness, design and reliability

Versatile and Stylish: Upgrade your rig with the sleek look of the Carbon Winch. The kit includes two free rope protectors, one in black and one in red, offering a splash of color for those who crave a bold front-end statement.

Waterproof and Ready for Action: The 2023 Model is now IP68 waterproof, handling river crossings and mud runs effortlessly. A high quality motor breather ensures heat expansion and contraction, making the Carbon Winch a stress-free companion for your off-road journeys.

Safety and Ease of Installation: If you're capable with a few basic tools, installing a Carbon Winch is easy! With step by step instructions and many extras included to get the job done.. The isolator switch and extra cabling prioritize safety, ensuring your winch is safely turned off when not in use.

Technical Features:

  • 6.2 HP Series wound motor
  • 216:1 ratio 3 stage planetary gearbox
  • Automatic brake in the motor housing drum plate provided load holding through the geartrain not directly on the drum (No heat build up in the drum)
  • Rotating ring gear free spool clutch assembly which minimises freespool drag and completely eliminates clutch engagement issues.
  • Power in and power out via a plug in hand remote or a wireless remote controller. The remote controller has 90 second auto off and failsafe operation features built in. The receiver is fully sealed and impervious to water.
  • 500amp sealed solenoid unit and wired handle remote control and wireless
  • Remote control unit

Specifications:

  • Rated line pull: 12000 lbs, (5450 kg) single-line
  • Motor: 12V DC 6.2HP series wound motor
  • Remote Control: Remote Switch, 12ft (3.7m) lead.
  • Wireless Remote Control: Included
  • Geartrain: 3-Stage Planetary.
  • Gear Ratio: 216:1
  • Clutch (free spooling): Rotating Ring Gear clutch with manual pull and twist clutch handle
  • Brake: Full load automatic brake installed in the motor housing end plate. No heat in the drum.
  • Drum Diameter/Length: 64mm x 224mm
  • Synthetic Rope:24m x 10mm diameter
  • Fairlead: Multi-fit CNC billet alloy black anodised with laser etched logo
  • Recommended Battery: 650 CCA minimum for winching

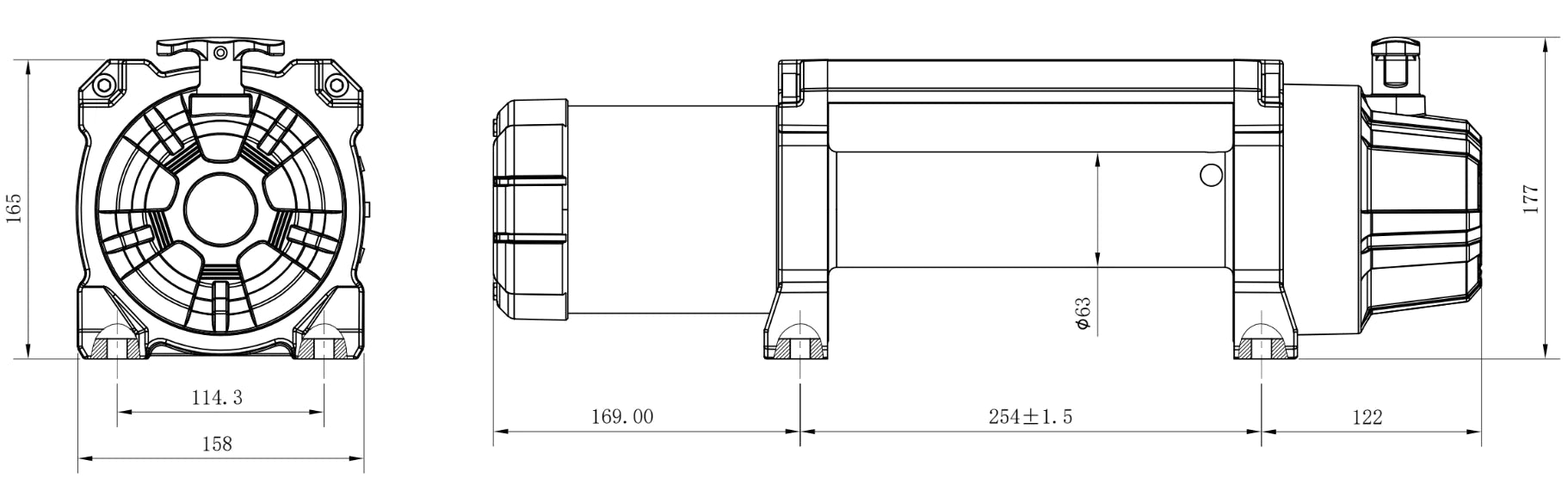

  • Mounting Bolt Pattern: 254mm x 114.3mm
  • Winch Dimensions ( L x W x H ): 21.7'' x 6.3'' x 6.8'' (552 x 160 x 172mm )
  • Packing Dimensions( L x W x H ): 24.2x 14.5' x 9.8' ( 615 x 370 x 250mm )
  • Winch weight with synthetic rope attached: VERSION 3 - 19.0KG

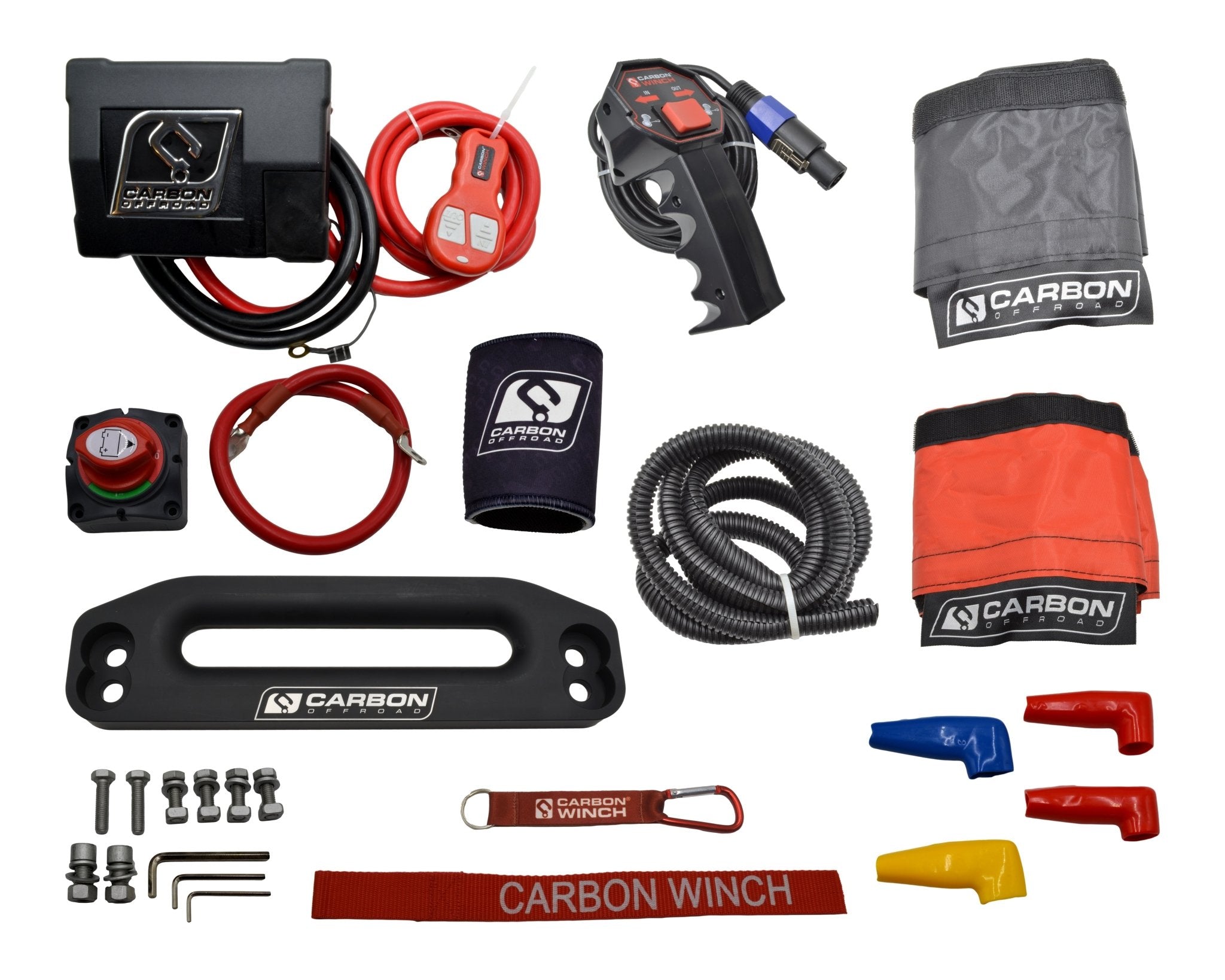

What do you get in the kit?

  • Carbon 12000lb Winch (6.2HP motor, 216:1 gear ratio)
  • 24m x 10mm high strength synthetic winch rope
  • 1 x Carbon winch hook (choose the colour to suit your rig)
  • 1 x 600A solenoid box Inc - all battery cables, wireless remote receiver, multi-fit mount
  • 1 x long black battery cable
  • 1 x Isolator switch
  • 1 x battery to isolator switch cable
  • 1 x Wireless remote
  • 1 x Wired remote
  • 1 x Multifit CNC Alloy fairlead (offset and standard position)
  • 4 x Mounting bolts
  • 3 x Allen keys
  • 2 x additional longer mounting bolts (fairlead mounting)
  • 2 x additional nuts for remote mounting solenoid box
  • 1 x Hook hand saver strap
  • 1 x FREE 1.5 M Branded Rope Protector Black
  • 1 x FREE 1.5 M Branded Rope Protector Red
  • 1 x Carbon lanyard
  • 1 x Carbon stubby cooler
  • Step by step Installation manual Included,
  • Winch Dimensions ( L x W x H ): 21.7'' x 6.3'' x 6.8'' (552 x 160 x 172mm )
  • Packing Dimensions( L x W x H ): 24.2x 14.5' x 9.8' ( 615 x 370 x 250mm )
  • Winch weight with synthetic rope attached: VERSION 3 - 19.0KG
  • Winch weight including synthetic rope, control box complete with cables, mounting bolts & fairlead: 23.45kg

12V DC performance specs (first layer of drum)

Line Pull

Lbs.(Kgs.)

Line Speed

FT./min(M/min.)

Motor

Current

Pull by layer

layer/Lbs(Kgs.)

43.3(13.2)

70 amps

1/12,000 (5450)

2000 (910)

11.5 (3.5)

130 amps

2/9800 (4450)

4000 (1810)

9.2(2.8)

170 amps

3/8300 (3770)

6000 (2720)

7.9 (2.4)

220 amps

4/7200 (3270)

8000 (3630)

6.9 (2.1)

265 amps



10000 (4540)

5.6 (1.7)

320 amps



12000 (5450)

4.6 (1.4)

390 amps
