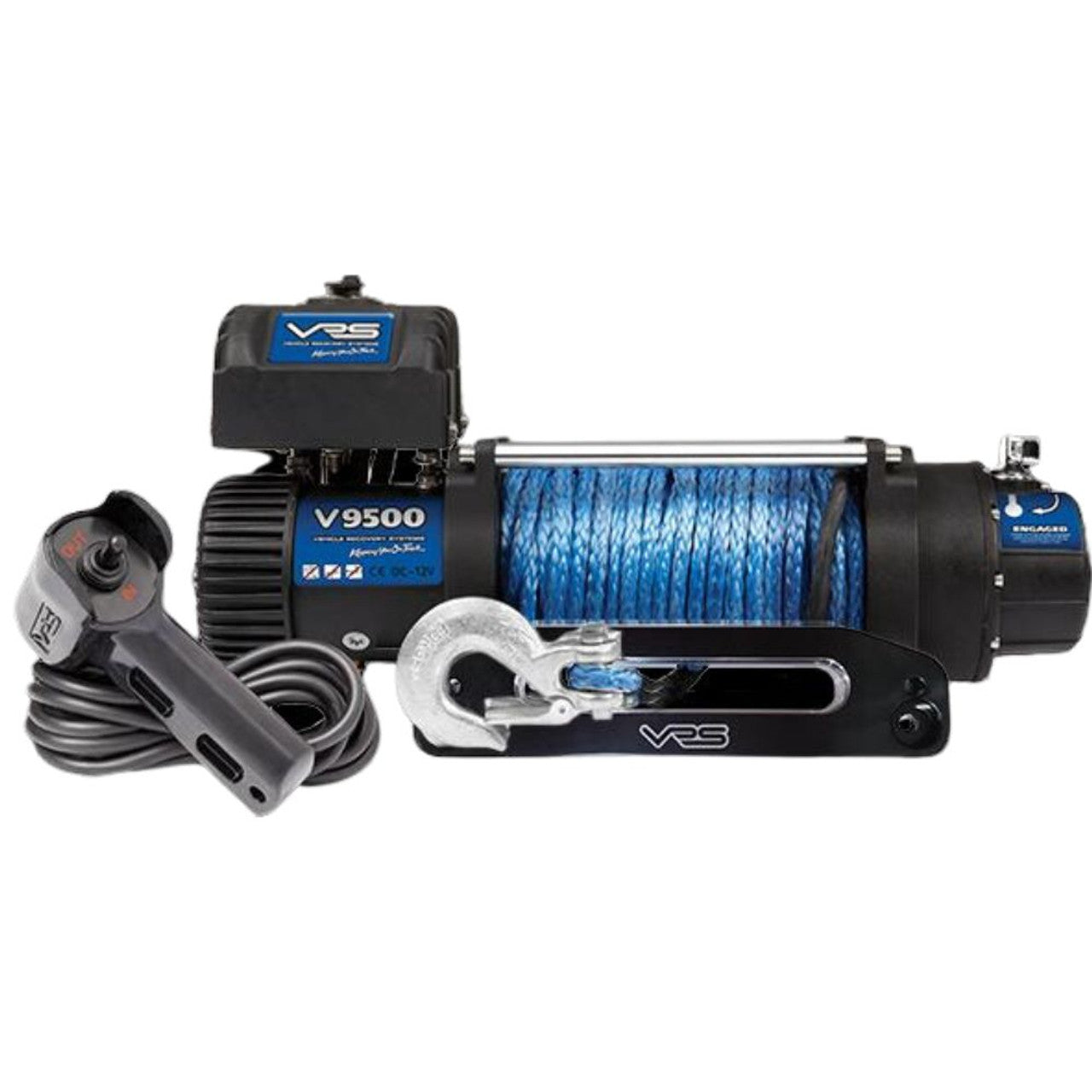

VRS 9500lb 12v Electric Winch With Synthetic Rope

VRS 9500lb 12v Electric Winch With Synthetic Rope

$1,090.00

Notify me when back in stock

Why Buy From Adventure Warehouse?

✅ FAST SHIPPING - ORDERS SHIPPED AUS WIDE WITHIN 24 HOURS

✅ WE'RE HERE TO HELP - SPEAK TO A REAL PERSON

✅ EASY RETURNS - 30 DAYS, NO RETURN FEES

✅ PRICE GUARANTEE - NOBODY BEATS OUR PRICES

When you’re out there in the thick of it, you need some serious machinery on your side. With an impressive 4300kgs of pulling power and fast line speed under load, the VRS 9500lb winch is the one vehicle recovery winch no driver, from the novice to the serious off-roader, should be without. Even in the most extreme conditions, this tough nut has the muscle to haul your vehicle back on track-fast. Get serious with your safety and get yourself a VRS winch.

FEATURES

  • IP68 Water & Dust rating
  • Textured UV and corrosion resistant finish
  • Sealed to resist water penetration
  • Stainless steel hardware and fittings
  • Heavy duty sealed high amperage contactor controller
  • Multi-segmented cam activated brake
  • Powerful pulling power
  • Fast line speed under load
  • Designed in Australia for the World

SPECIFICATIONS

Line Pull 9,500lb / 4,310 kg
Motor 12V Series Wound 5.3hp/3.9kw 12v DC
Gear Train 3 stage planetary gears
Gear Ratio 216 : 1
Freespool Sliding ring gear
Brake Automatic, in the drum
Battery Recommended 650 CCA minimum for winching
Battery Lead 25mm, 72″ (1.83M)
Synthetic Rope Size 9mm x 30m
Drum Size 2.5″ x 9.0″ (64mm x 224mm)
Mounting Bolt Pattern 10″ x 4.5″ (254mm x 114.3mm)
Dimensions 23″ x 6.6″x 8.4″ (552mm x 168mm x 214mm)

LINE PULL AND ROPE CAPACITY

Layer of wire rope Line Pull kg / lb Total Rope on the Drum m/ft
1st Layer 4,310 / 9,500 6 / 19.6
2nd Layer 3,629 / 8,000 13.2 / 43
3rd Layer 3,266 / 7,200 22 / 72
4th Layer 2,994 / 6,000 30 / 100

LINE SPEED AND AMP. DRAW*

Line Pull kg/lb Line Speed mpm/fpm Amp. Draw 12V
No Load 10.8 / 35.4 80
907 / 2,000 4.5 / 14.76 160
1,814 / 4,000 3.7 / 12.14 220
2,722 / 6,000 2.98 / 9.79 280
3,629 / 8,000 2.6 / 8.53 320
4,310 / 9,500 2.2 / 7.2 360



(*1ST LAYER OF ROPE ON THE DRUM)

STANDARD ACCESSORIES

  • Detachable Contactor Pack
  • Remote control
  • Synthetic Rope with Hook
  • Black Hawse fairlead
  • 1.83m (6′) 25mm battery lead
  • Handsaver strap
