VRS Utility Electric Winch 12V 4000lb With Synthetic Rope
$469.00
Why Buy From Adventure Warehouse?
✅ FAST SHIPPING - ORDERS SHIPPED AUS WIDE WITHIN 24 HOURS
✅ WE'RE HERE TO HELP - SPEAK TO A REAL PERSON
✅ EASY RETURNS - 30 DAYS, NO RETURN FEES
✅ PRICE GUARANTEE - NOBODY BEATS OUR PRICES

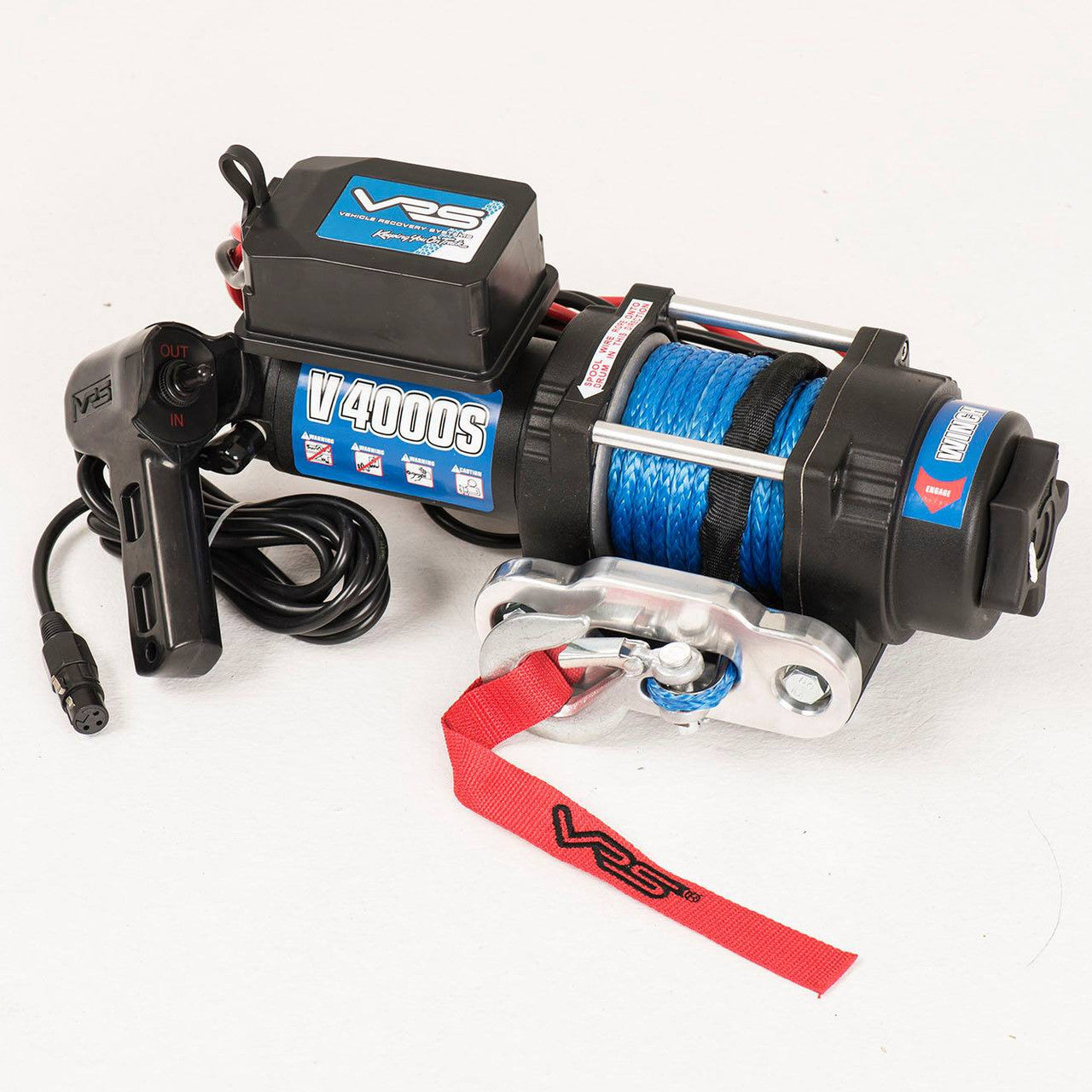

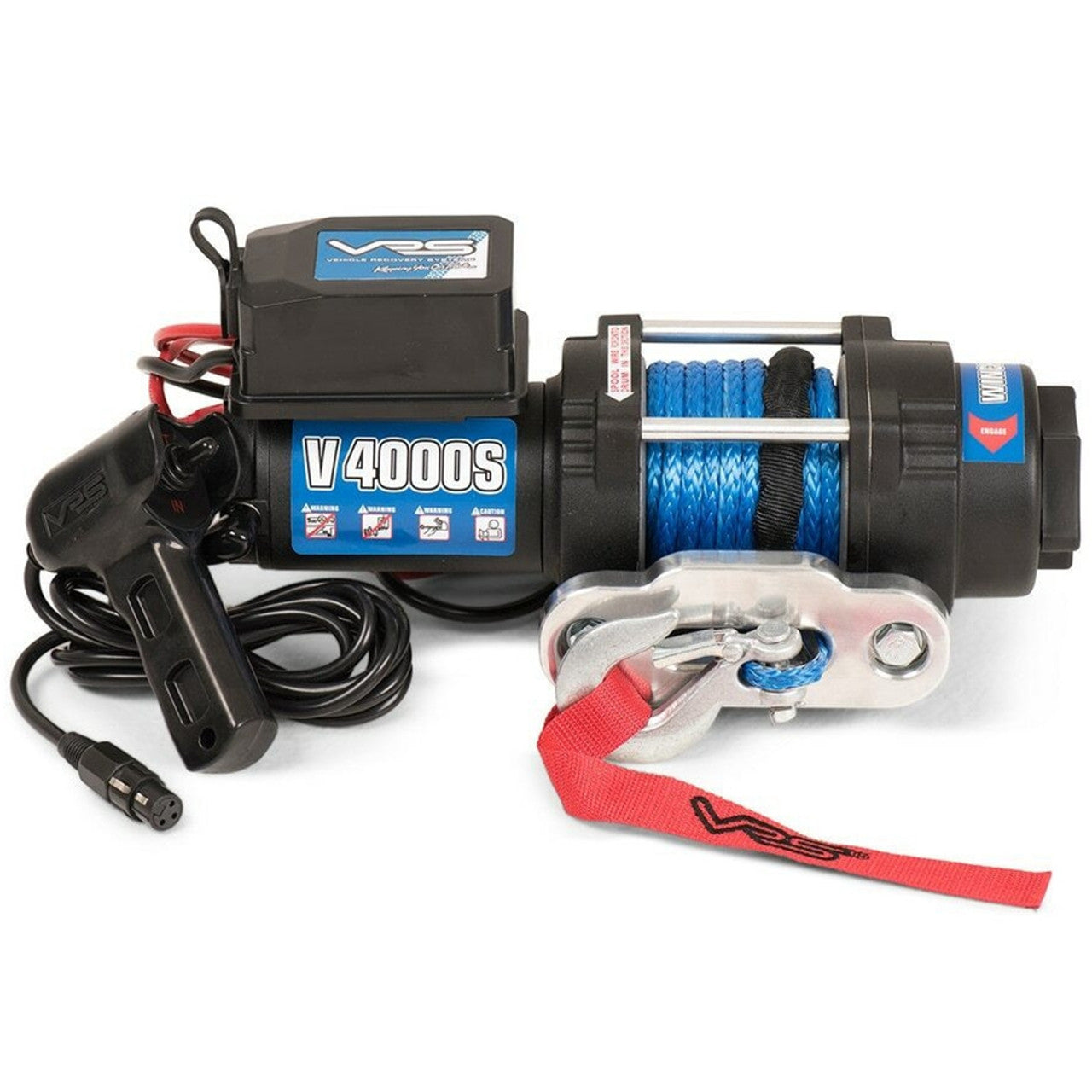

The VRS 4000LBS Utility Winch is a compact sized winch to help you with those heavy jobs around the home or on the work site. Easily install on your trailer, ute, workshop or more for a hassle free winching solution.
- Heavy duty sealed high amperage contactor
- Pendant control
- Textured UV and corrosion resistant finish
- Sealed to resist water penetration
- Mechanical braking system
- Designed in Australia for the World
SPECIFICATIONS
| Line Pull | 4,000lb/ 1,818kgs |
| Motor 12V | Permanent magnet 1.6hp/1.2kw DC12V |
| Gear Train | 3 stage planetary gears |
| Gear Ratio | 198: 1 |
| Freespool | Sliding ring gear |
| Brake | Automatic, in the drum |
| Battery | Recommended 650 CCA minimum for winching |
| Synthetic Rope Size | 6mm x 10m |
| Drum Size | 50mm x 76.5mm |
| Mounting Bolt Pattern | 124mm x 76mm |
| Dimensions | 334mm x 114mm x 120mm |
| Net Weight | 8.6kgs (19lbs) |
LINE PULL AND ROPE CAPACITY
| Layer of wire rope | Line Pull kg / lb | Total Rope on the Drum m/ft |
|---|---|---|
| 1st Layer | 1,818 / 4,000 | 2 / 6.6 |
| 2nd Layer | 1,460 / 3,225 | 4.3 / 14.1 |
| 3rd Layer | 1,225 / 2,700 | 7.2 / 23.6 |
| 4th Layer | 1,055 / 2,325 | 10 / 39 |
LINE SPEED AND AMP. DRAW*
| Line Pull kg/lb | Line Speed mpm/fpm | Amp. Draw 12V |
| No Load | 4.9 / 16.0 | 17 |
| 454 / 1,000 | 3.2 / 10.5 | 70 |
| 907 / 2,000 | 2.8 / 9.2 | 105 |
| 1,360 / 3,000 | 2.2 / 7.2 | 135 |
| 1,818 / 4,000 | 1.5 / 4.9 | 180 |
* 1ST LAYER OF ROPE ON THE DRUM
STANDARD ACCESSORIES
- Detachable Contactor Pack
- Remote pendant control
- Synthetic Rope with Hook
- Hawse fairlead
- Handsaver strap
