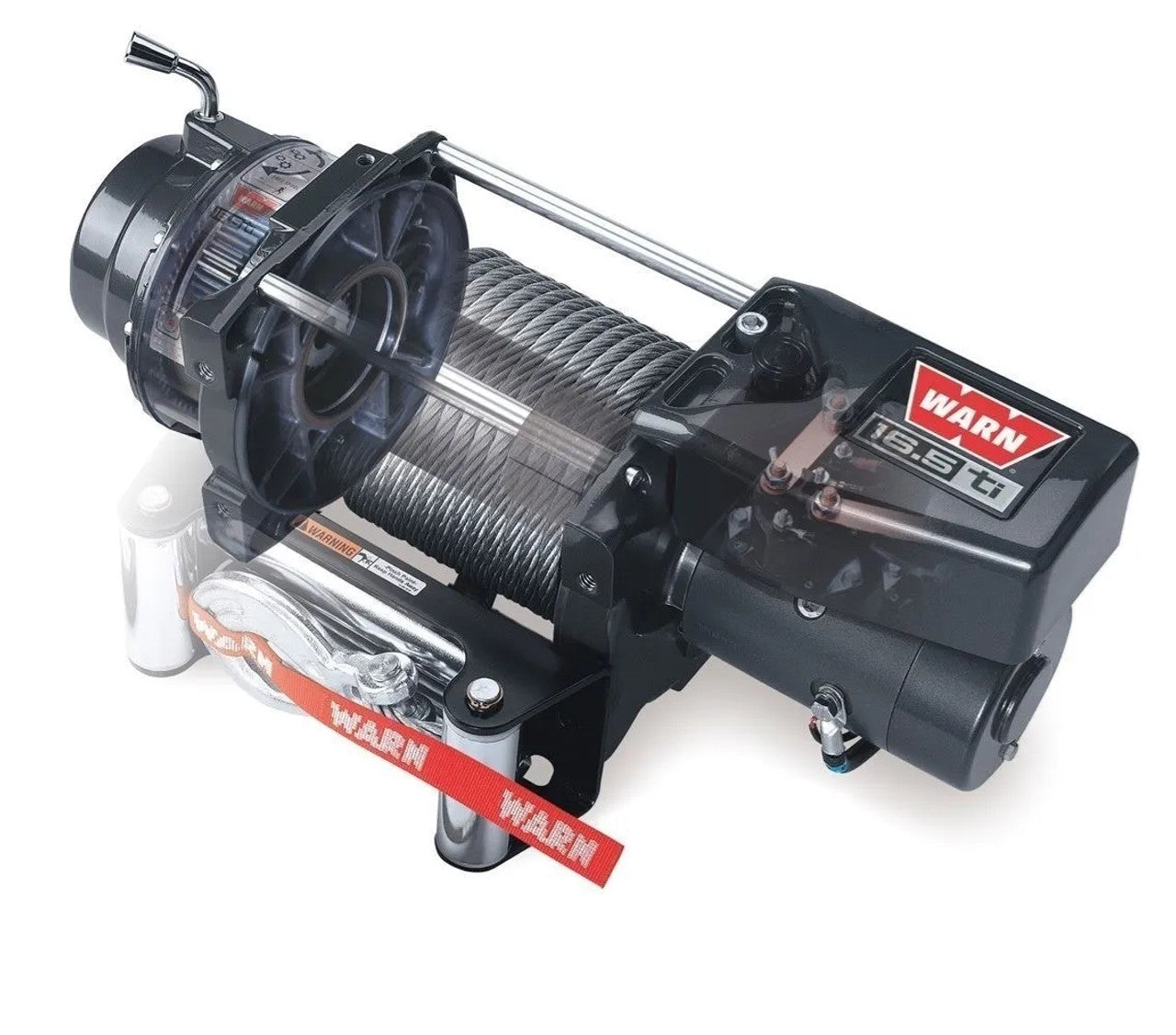

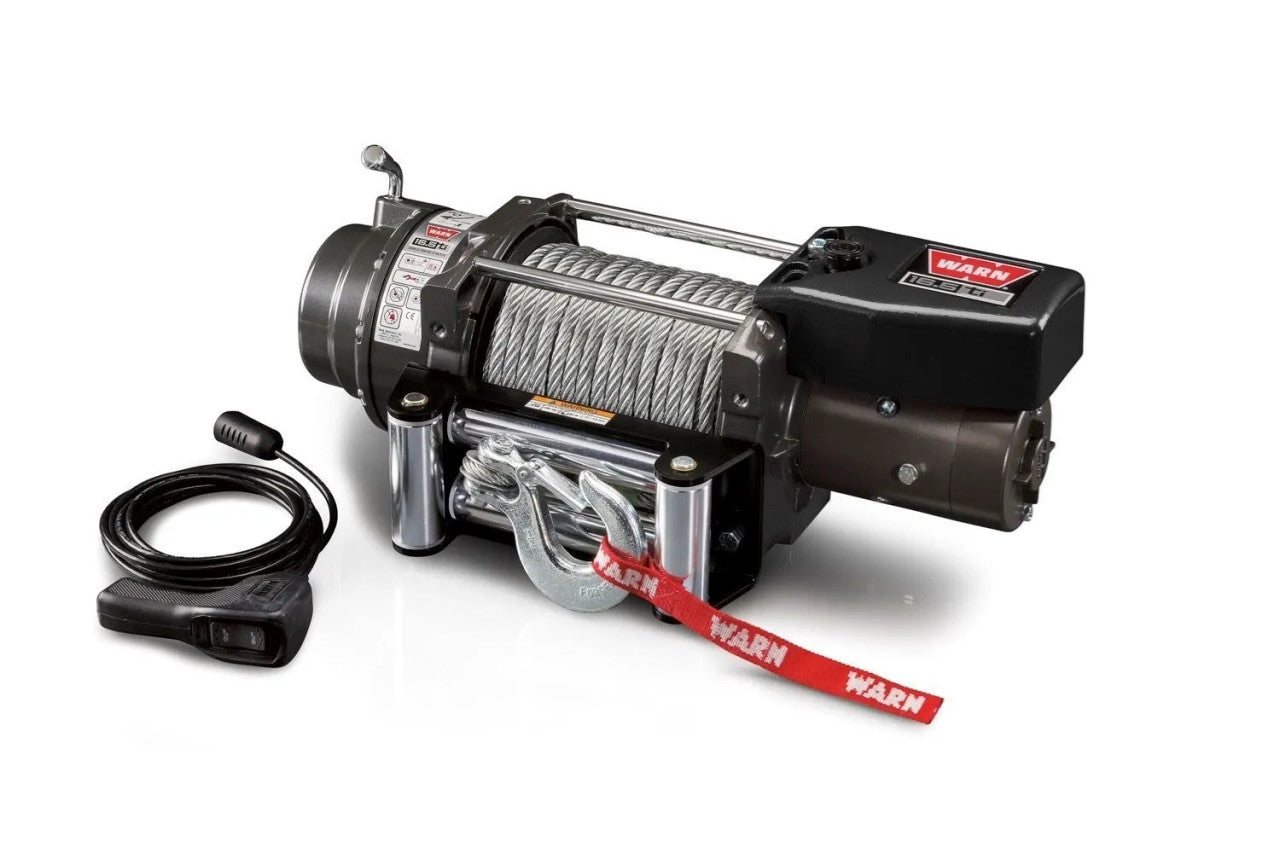

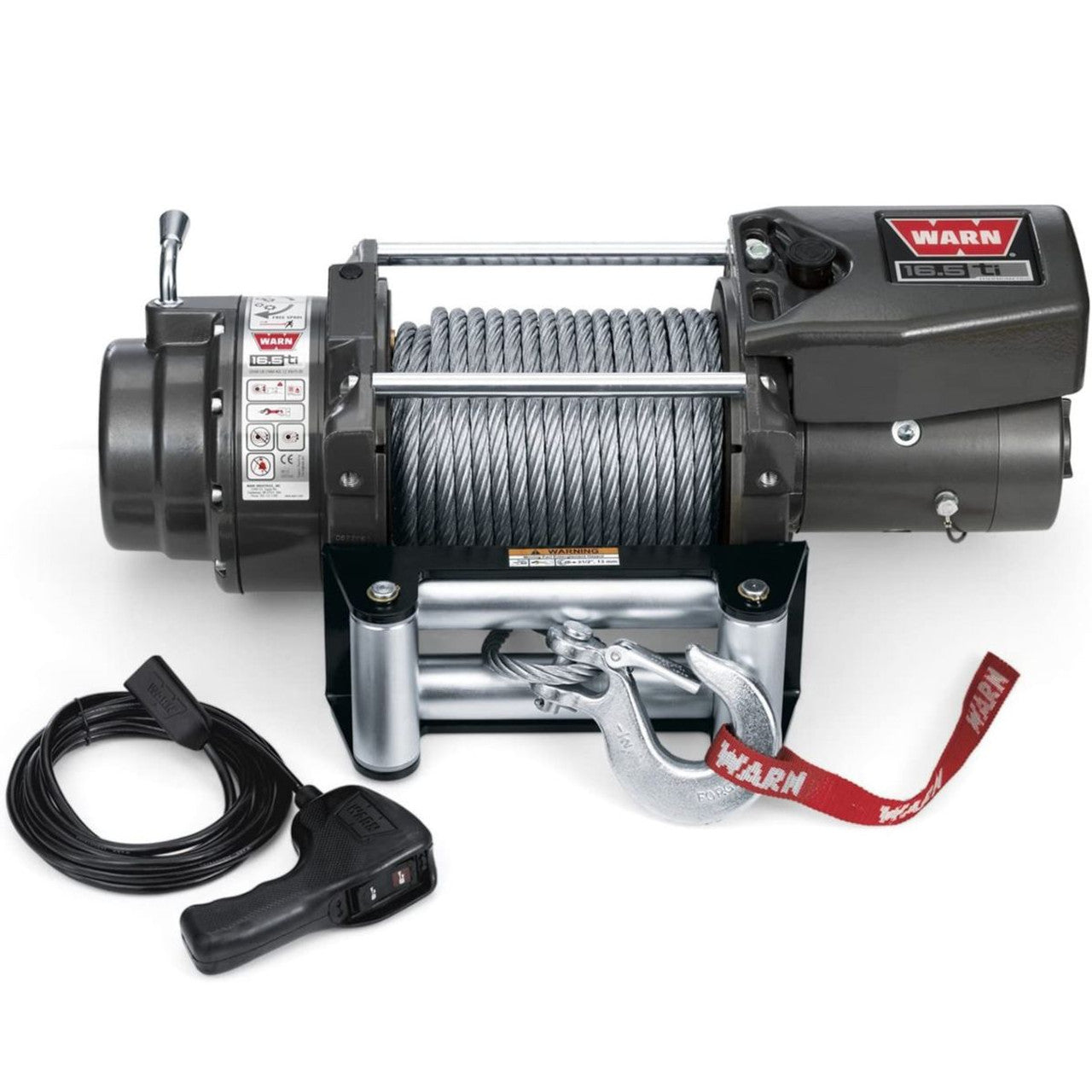

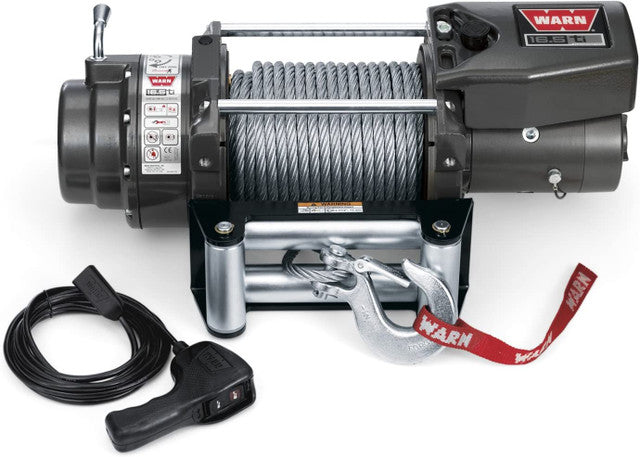

WARN 16.5TI 12V 16,500lb Heavyweight Thermometric Winch - Steel Rope
Why Buy From Adventure Warehouse?
✅ FAST SHIPPING - ORDERS SHIPPED AUS WIDE WITHIN 24 HOURS
✅ WE'RE HERE TO HELP - SPEAK TO A REAL PERSON
✅ EASY RETURNS - 30 DAYS, NO RETURN FEES
✅ PRICE GUARANTEE - NOBODY BEATS OUR PRICES
What do you get when you combine 16,500 Pound. Of pulling power with all the innovative features of the Warn TI series? the Warn 16.5TI thermometric Winch. The highest capacity, most technologically advanced truck Winch in the industry today. The 16.5TI features the full diagnostic ability of Warn thermometric technology, plus the extreme sealing, durability, and reliability that the Warn TI Series of Winches are known for. The new, more efficient design delivers faster line speeds and lower ampere draw.
Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.
Features:
- Extreme-duty sealing helps protect the winch from the outside elements
- Series-wound, high-speed motor provides fast line speed and strong pulls
- Exclusive brake design provides superior control while winching
- Aluminum control box cover for added protection of the electronics
- Durable 3-stage planetary geartrain for smooth, reliable, operation
- Remote control with 12' (3.7m) lead and thermometric LED indicator for operator feedback
- Chip-resistant powder-coated finish with primer undercoating for superior corrosion protection
- 90' of 7/16" (27m of 11mm) diameter wire rope
- Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
- Please note: the thermometric indicator on the 16.5 is not compatible with the HUB Wireless receiver, so heat warning functionality isn't available for 16.5 winches when using the HUB Wireless Receiver.
Specifications:
| TYPE | Electric |
| MOUNT TYPE | Vehicle Mounted |
| RECOMMENDED USE | Vehicle Recovery |
| VOLTAGE | 12 Volt |
| MOTOR HORSEPOWER | 4.6 Horsepower |
| ELECTRICAL CONTROL TYPE | Solenoid |
| MOTOR TYPE | Series Wound |
| THERMAL SHUTOFF | No |
| DRIVE GEAR TYPE | Planetary |
| GEAR REDUCTION RATIO | 315:1 |
| FREE SPOOLING | Yes |
| BRAKE TYPE | Direct Drive Cone |
| LINE DIAMETER (IN) | 7/16 Inch |
| LINE LENGTH (FT) | 90 Feet |
| LINE MATERIAL | Steel |
| FAIRLEAD TYPE | Roller |
| CONFORMS TO J706 STANDARDS | No |
| REMOTE TYPE | Handheld Remote Switch |
| MOUNTING HOLE QUANTITY | 4 |
| OPERATION TYPE | Automatic |
| MOUNTING PATTERN LENGTH (IN) | 10 Inch |
| MOUNTING PATTERN WIDTH (IN) | 4-1/2 Inch |
| INCLUDES MOUNTING HARDWARE | No |
| COLOR | Gray |
| MAX AMP DRAW/ LINE PULL | 507 Amp Draw/ 16500 Pound |
| MAX LINE PULL/ LINE SPEED | 16500 Pound/ 3.24 Feet Per Minute |
