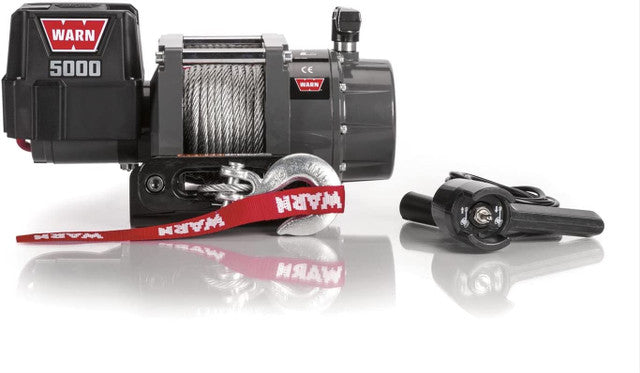

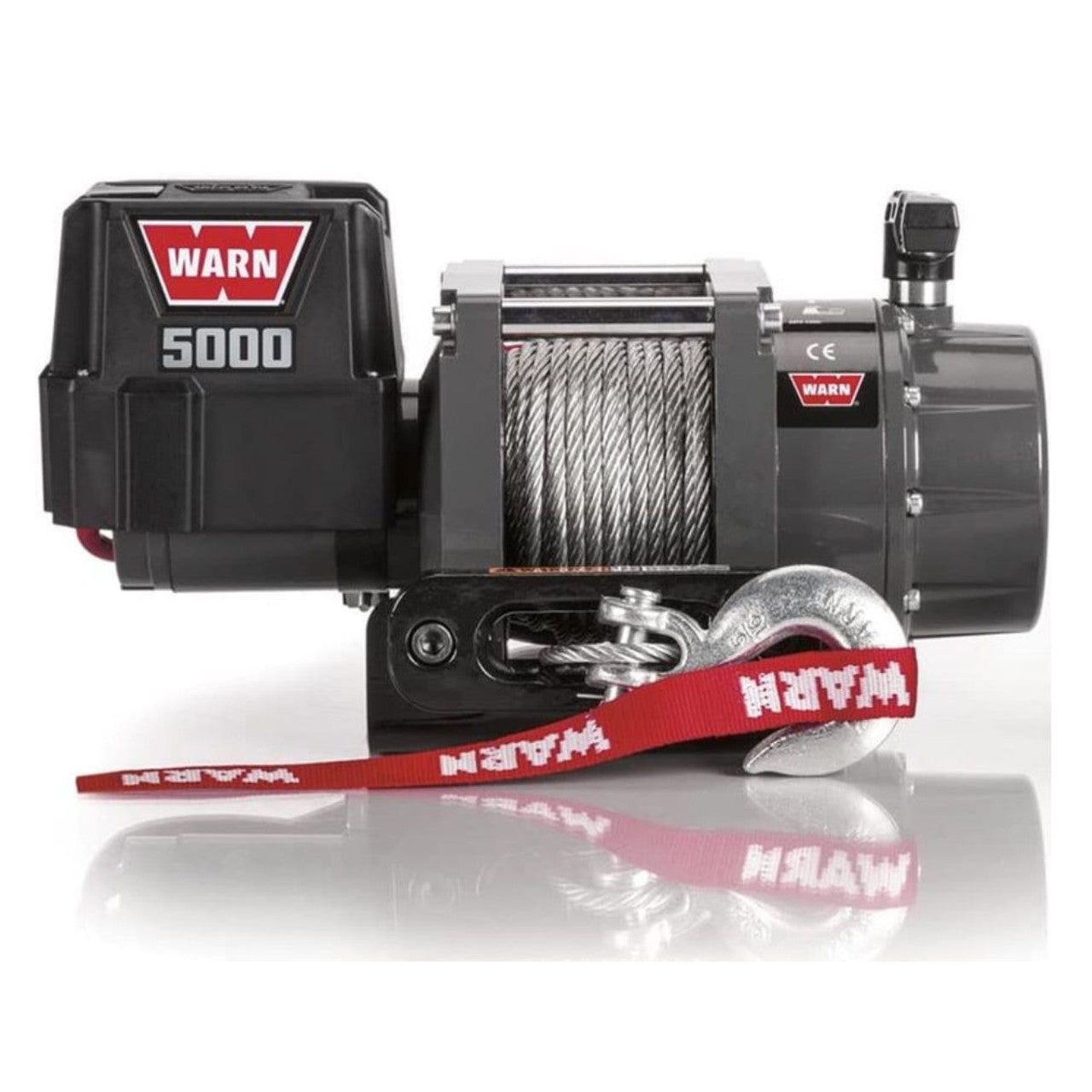

WARN 5000 DC Utility Electric Winch 5000lbs 12V - Steel Rope

$1,629.00

Notify me when back in stock

Why Buy From Adventure Warehouse?

✅ FAST SHIPPING - ORDERS SHIPPED AUS WIDE WITHIN 24 HOURS

✅ WE'RE HERE TO HELP - SPEAK TO A REAL PERSON

✅ EASY RETURNS - 30 DAYS, NO RETURN FEES

✅ PRICE GUARANTEE - NOBODY BEATS OUR PRICES

The 5000 DC boasts a ready-for-anything attitude. Bring on the big loads, the big jobs no one wants to tackle. Couple 60 Foot of wire rope with the powerful three-stage planetary gear train and you've got a peerless load-mover.

Features:

  • Strong 1.9 Horsepower Permanent Magnet DC Motor
  • Durable, Reliable Three-Stage Planetary Geartrain
  • Dynamic And Mechanical Braking For Excellent Control And Holding Power
  • Pulls Up To 5,000 Pounds (2268 KiloGram)

Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.

Specifications:

  • Capacity: 5,000 lbs. (2268 kg) single-line
  • Power: 12V DC
  • Motor: Permanent magnet, 3.0” diameter
  • HP: 1.9 hp
  • Controls: Remote with 12’ (3.7 m) lead
  • Gear train: 3-stage planetary
  • Gear Ratio: 216:1
  • Clutch (Freespool): Lever – Multi-Directional
  • Brake: Dynamic and mechanical braking
  • Warranty: Limited one year
  • Steel rope: 1/4” x 60’ (6.4mm x 18.3m)
  • Drum Diameter: 2.5” (63.5mm)
  • Fairlead: Hawse
  • Electrical leads: 2–6’ (1.8 m) x 6 Gauge cable
  • Duty Cycle: Intermittent
  • Mounting Bolt Patten: 4 holes - 4.5” x 4.26” (114.3mm x 108.3mm)
  • Length: 14.83” (376.8mm)
  • Weight: 42 Lbs. (19.1 kg)
