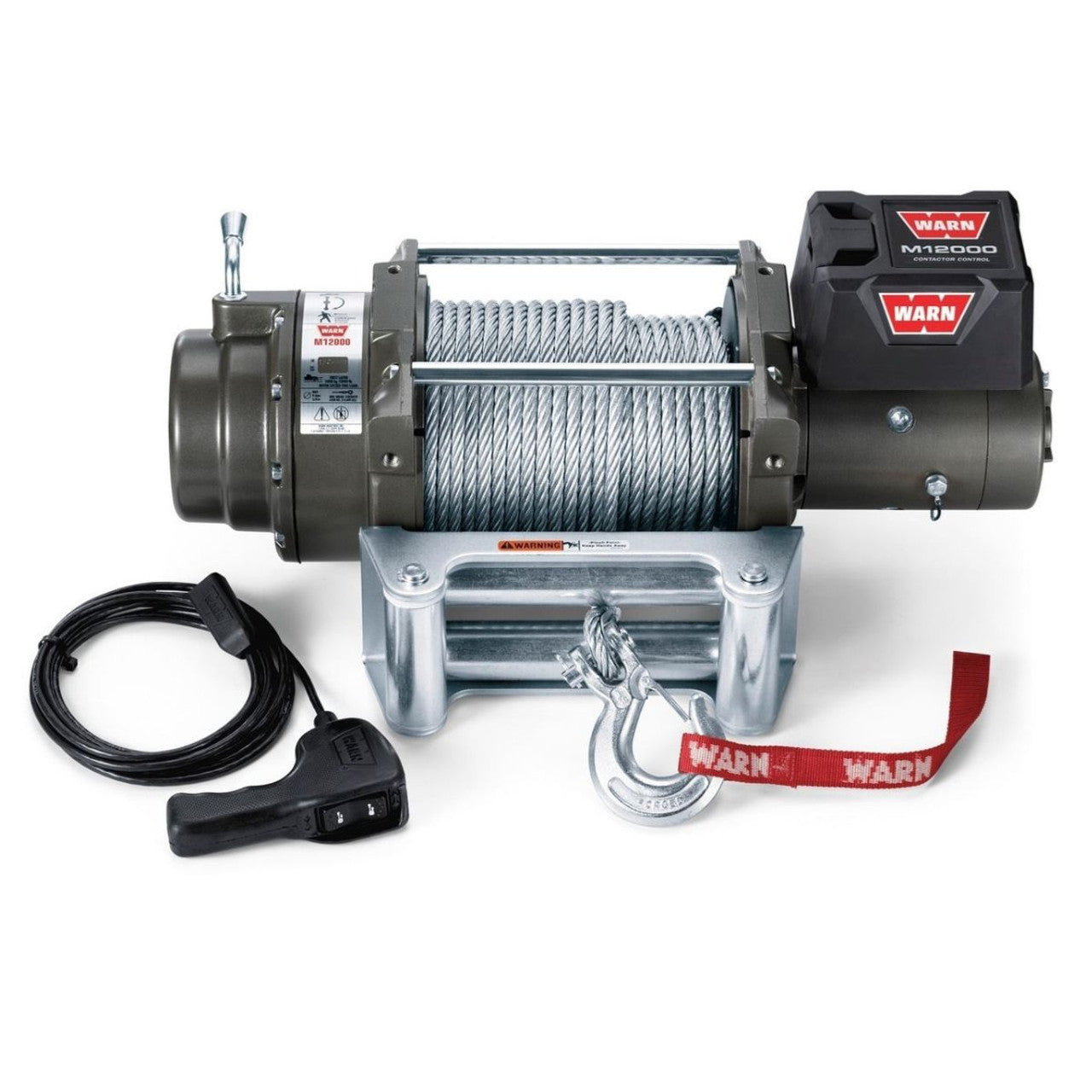

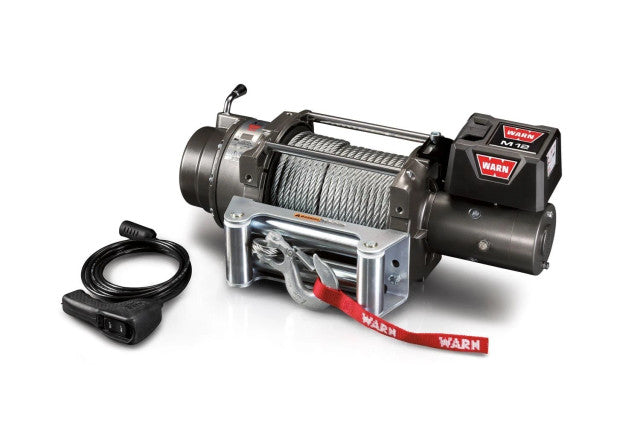

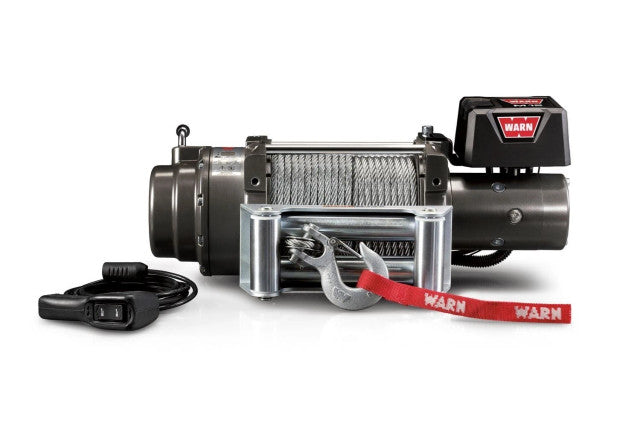

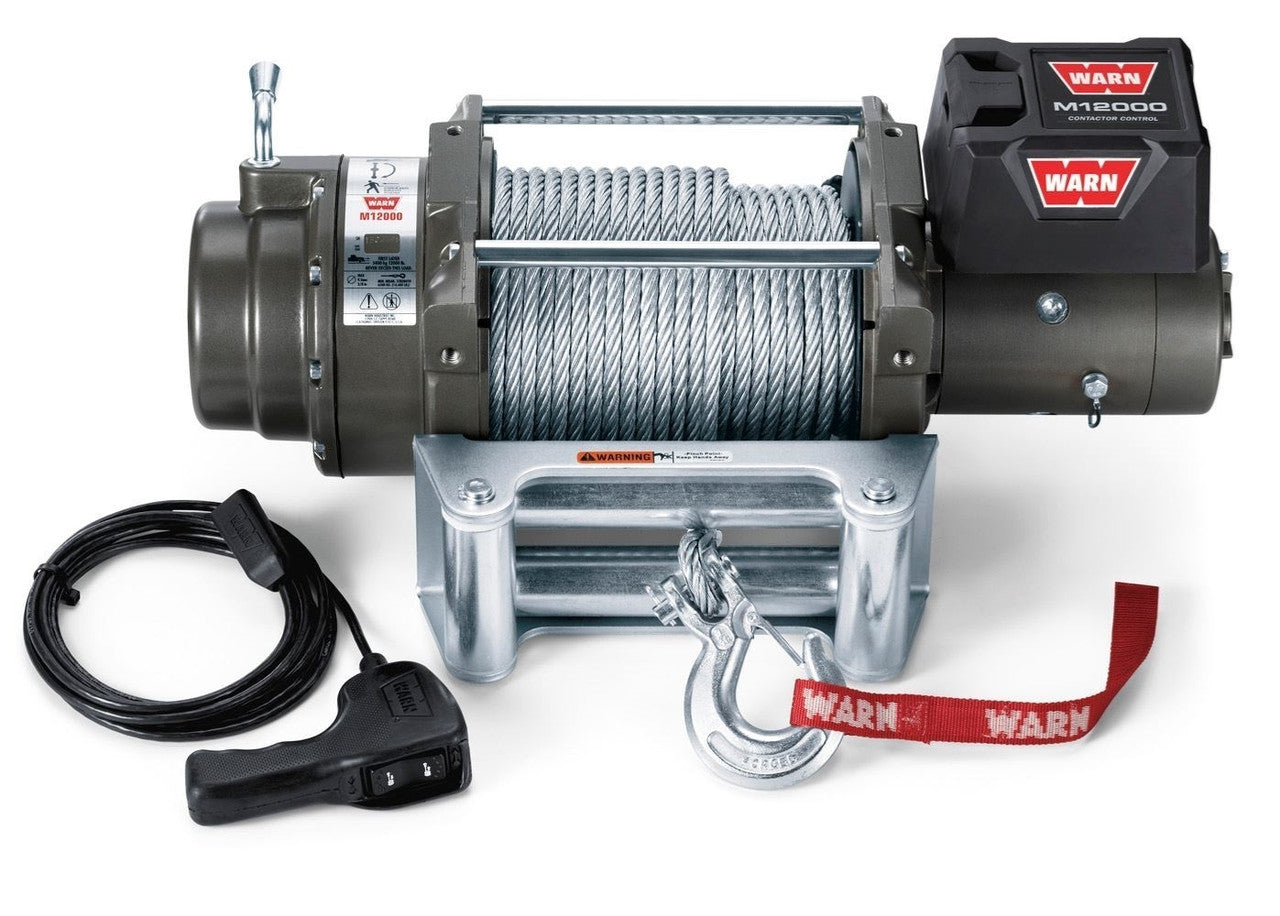

WARN M12 Heavy Duty 12000lb Recovery Electric Winch 12V - Wire Rope
$4,199.00
Why Buy From Adventure Warehouse?
✅ FAST SHIPPING - ORDERS SHIPPED AUS WIDE WITHIN 24 HOURS
✅ WE'RE HERE TO HELP - SPEAK TO A REAL PERSON
✅ EASY RETURNS - 30 DAYS, NO RETURN FEES
✅ PRICE GUARANTEE - NOBODY BEATS OUR PRICES
Champion workhorse for heavy-duty winching. 3-stage planetary gear train combined with a 4.6hp series wound motor produce 12,000 lbs. of pulling power. Design is low profile so it fits where you want it. This Warn Industries M12000 Series 12 volt electric Winch is vehicle mounted and has a pull capacity of 12,000 pound. It has a 125 feet wire rope.
Please Note: This Winch will require winch mount for proper installation.
Features:
- 12,000 lb. (5,440 kg) pulling capacity (single line)
- Large frame winch design is designed to handle heavier winch loads
- Series-wound, high-speed motor provides fast line speed and strong pulls
- Brake provides superior control while winching
- Remote-mount control box allows for various mounting options
- Durable 3-stage planetary geartrain for smooth, reliable, operation
- Remote control with 12' (3.7m) lead
- Chip-resistant powder-coated finish
- 125' of 3/8" (38m of 9.5mm) diameter wire rope
- Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
Specifications:
| TYPE | Electric |
| MOUNT TYPE | Vehicle Mounted |
| RECOMMENDED USE | Vehicle Recovery |
| VOLTAGE | 12 Volt |
| MOTOR HORSEPOWER | 4.6 Horsepower |
| ELECTRICAL CONTROL TYPE | Contactors |
| MOTOR TYPE | Series Wound |
| THERMAL SHUTOFF | No |
| DRIVE GEAR TYPE | Planetary |
| GEAR REDUCTION RATIO | 261:1 |
| FREE SPOOLING | Yes |
| BRAKE TYPE | Mechanical Cone |
| LINE DIAMETER (IN) | 3/8 Inch |
| LINE LENGTH (FT) | 125 Feet |
| LINE MATERIAL | Steel |
| FAIRLEAD TYPE | Roller |
| CONFORMS TO J706 STANDARDS | No |
| REMOTE TYPE | Handheld Remote Switch |
| MOUNTING HOLE QUANTITY | 4 |
| OPERATION TYPE | Automatic |
| MOUNTING PATTERN LENGTH (IN) | 10 Inch |
| MOUNTING PATTERN WIDTH (IN) | 4-1/2 Inch |
| INCLUDES MOUNTING HARDWARE | No |
| COLOR | Gray |
| MAX LINE PULL/ LINE SPEED | 12000 Pound/ 3.86 Feet Per Minute |
| MAX AMP DRAW/ LINE PULL | 440 Amp Draw/ 12000 Pound |
