WARN M15 15000lb Electric Recovery Winch 24V - Steel Rope
$5,499.00
Why Buy From Adventure Warehouse?
✅ FAST SHIPPING - ORDERS SHIPPED AUS WIDE WITHIN 24 HOURS
✅ WE'RE HERE TO HELP - SPEAK TO A REAL PERSON
✅ EASY RETURNS - 30 DAYS, NO RETURN FEES
✅ PRICE GUARANTEE - NOBODY BEATS OUR PRICES

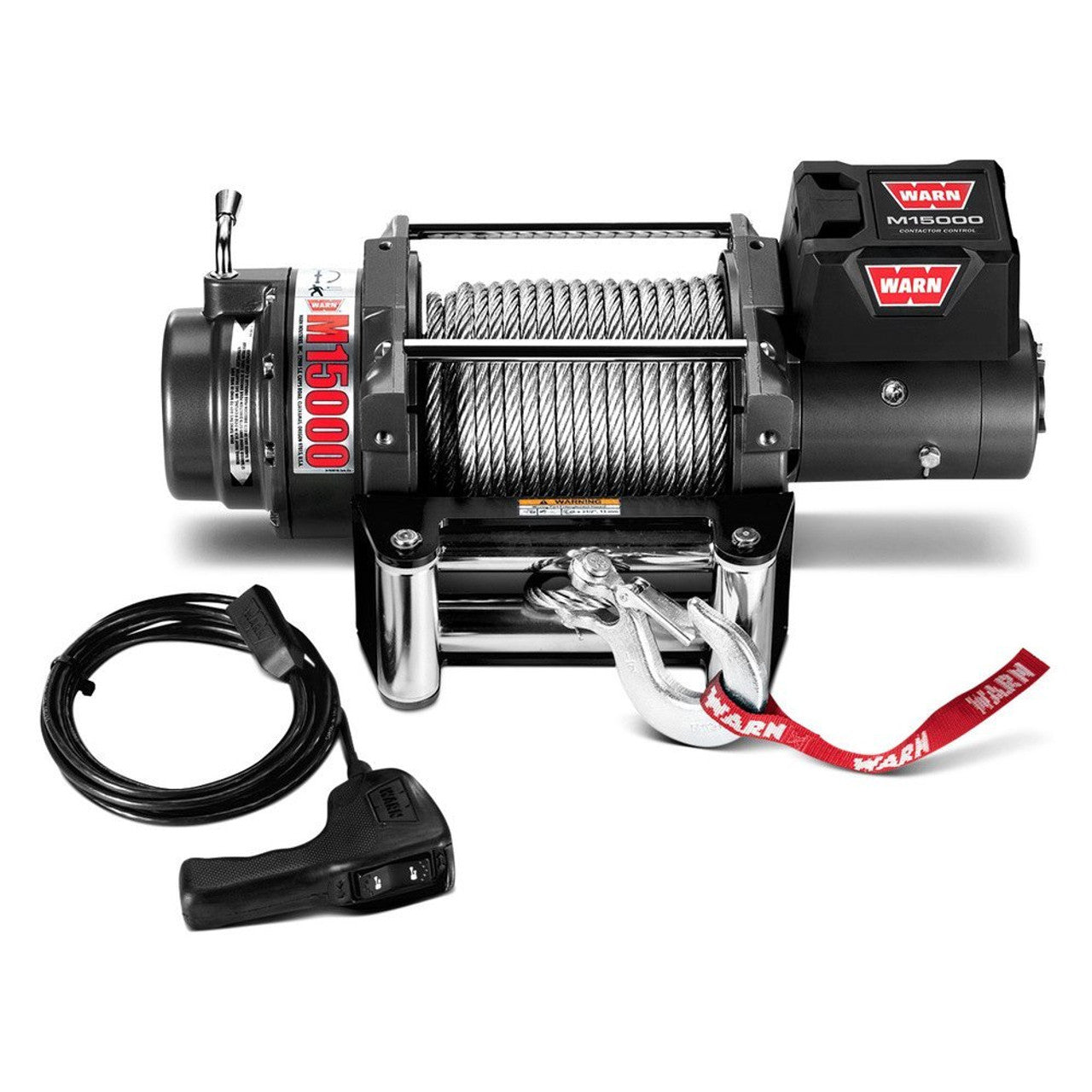

When you work hard enough to need a really big truck, you'll want a Winch with enough capacity to get the job done. The Warn Winch boasts high strength carrier plates to handle the gear train stresses of a 15,000 Pounds Load. The gear ratio is 315:1, with 90 Foot of 7/16 Inch wire rope equipped with a large latched hook. The control pack is designed for generous clearance and ease of access
Please Note: This Winch will require winch mount for proper installation.
Features:
- Most Powerful Winches On The Market
- Pulling Capacity Up To 15,000 Pounds
- High Strength Carrier Plates To Handle The Heavy Gear Train Stresses
- Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.
Specifications:
| TYPE | Electric |
| MOUNT TYPE | Vehicle Mounted |
| RECOMMENDED USE | Vehicle Recovery |
| VOLTAGE | 24 Volt |
| MOTOR HORSEPOWER | 2.5 Horsepower |
| ELECTRICAL CONTROL TYPE | Contactors |
| MOTOR TYPE | Series Wound |
| THERMAL SHUTOFF | No |
| DRIVE GEAR TYPE | Planetary |
| GEAR REDUCTION RATIO | 315:1 |
| FREE SPOOLING | Yes |
| BRAKE TYPE | Mechanical Cone |
| LINE DIAMETER (IN) | 7/16 Inch |
| LINE LENGTH (FT) | 90 Feet |
| LINE MATERIAL | Steel |
| FAIRLEAD TYPE | Roller |
| CONFORMS TO J706 STANDARDS | No |
| REMOTE TYPE | Handheld Remote Switch |
| MOUNTING HOLE QUANTITY | 4 |
| OPERATION TYPE | Automatic |
| MOUNTING PATTERN LENGTH (IN) | 10 Inch |
| MOUNTING PATTERN WIDTH (IN) | 4-1/2 Inch |
| INCLUDES MOUNTING HARDWARE | No |
| COLOR | Gray |
| MAX LINE PULL/ LINE SPEED | 15000 Pound/ 4.3 Feet Per Minute |
| MAX AMP DRAW/ LINE PULL | 235 Amp Draw/ 15000 Pound |
