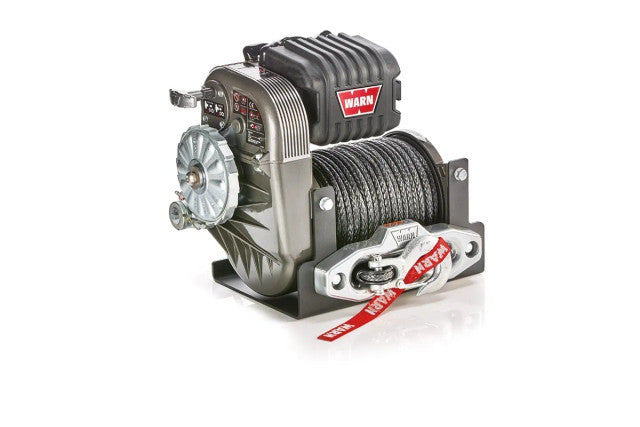

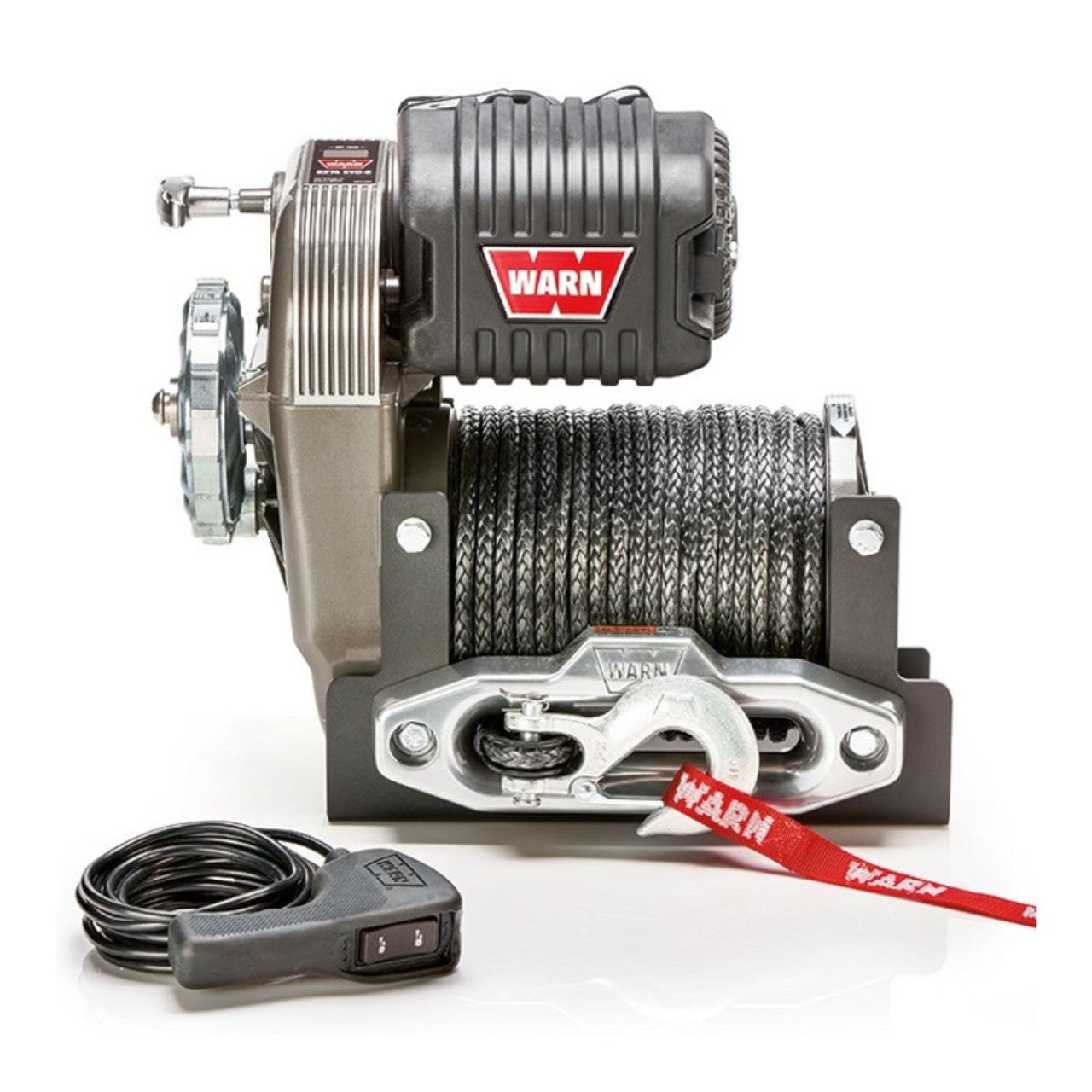

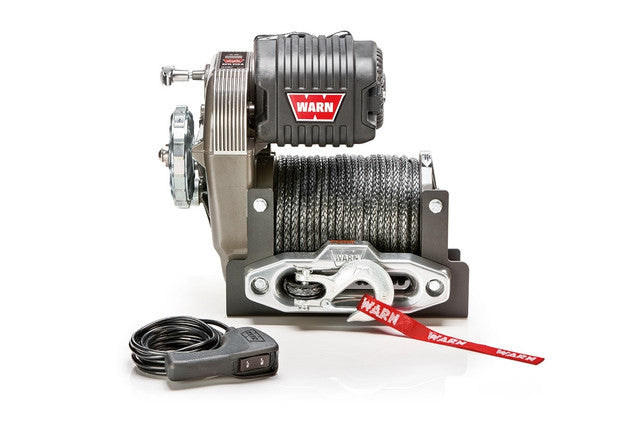

WARN M8274-S 12V 10,000lbs High Mount Winch - Spydura Synthetic Rope

$5,999.00

Notify me when back in stock

Why Buy From Adventure Warehouse?

✅ FAST SHIPPING - ORDERS SHIPPED AUS WIDE WITHIN 24 HOURS

✅ WE'RE HERE TO HELP - SPEAK TO A REAL PERSON

✅ EASY RETURNS - 30 DAYS, NO RETURN FEES

✅ PRICE GUARANTEE - NOBODY BEATS OUR PRICES

The M8274–Warn Industries’ most iconic winch—is evolving. It will maintain all the things buyers love about the product: speed, durability, and its famous shape, but we’ve added more performance and more features. Comes with 150’ of 3/8” diameter lightweight, easy-to-handle Spydura synthetic rope.

Features:

  • High-output 6 HP motor for increased 10,000 lb. pulling capacity (up from 8,000 lbs.)—ideal for today’s larger, heavier vehicles
  • IP68 waterproof Albright electrical contactor for the ultimate in reliability and control
  • Restyled high-strength polymer control pack housing for a modern twist on classic styling
  • Ergonomic stainless steel clutch T-handle is easier to use than before
  • Two Oilite® bushings installed on pinion gear assembly for improved durability in extreme recovery conditions
  • Bolt-and-washer assembly replaces retaining ring on brake shaft
  • Made in the USA in Clackamas, Oregon

Specifications:

  • Part numbers: 106175 - M8274-S (Synthetic Rope)
  • Rated line pull: 10,000 lbs. (4536 kg) single-line
  • Motor: 12V DC, 6HP Series Wound
  • Electrical Controls: Contactor
  • Remote Control: Remote switch, 12’ (3.7m) lead
  • Geartrain: 3 Stage Spur Gear
  • Gear ratio: 134:1
  • Clutch (freespooling): Sliding motor pinion gear
  • Brake: Automatic disc type
  • Drum Diameter/Length: 3.5”/8.5” (9cm/22cm)
  • Rope: M8274-S: 3/8” x 150’ Spydura synthetic rope
  • Fairlead: M8274-S: Forged Hawse Fairlead
  • M874: Roller Fairlead
  • Replacement Rope: Synthetic - 102343
  • Steel Rope - 106141
  • Recommended Battery: 650 CCA minimum for winching
  • Battery Leads: 2 gauge, 72” (1.83m)
  • Finish: Powder coat with clear coat
  • Weight: 90lb (40.8kg)
