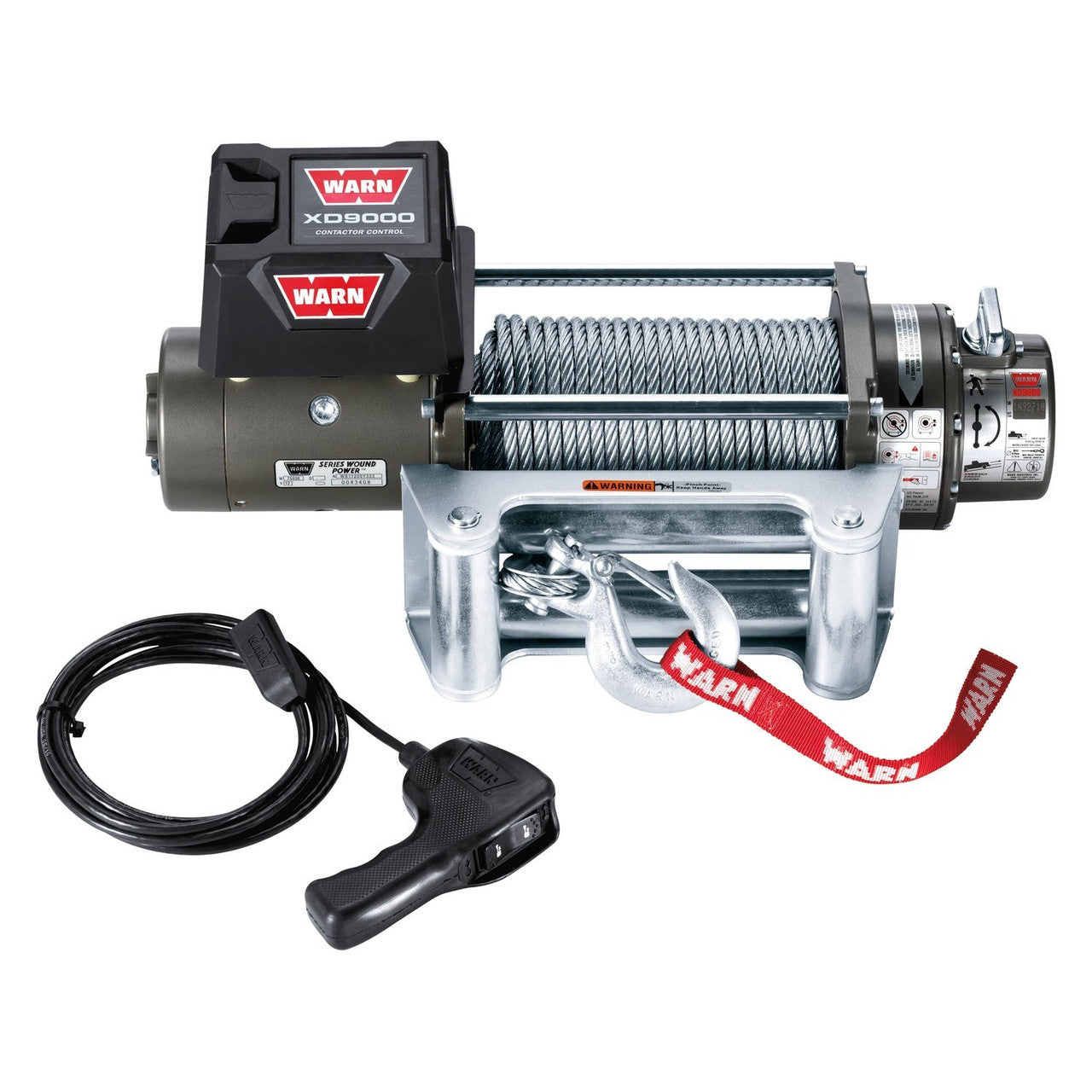

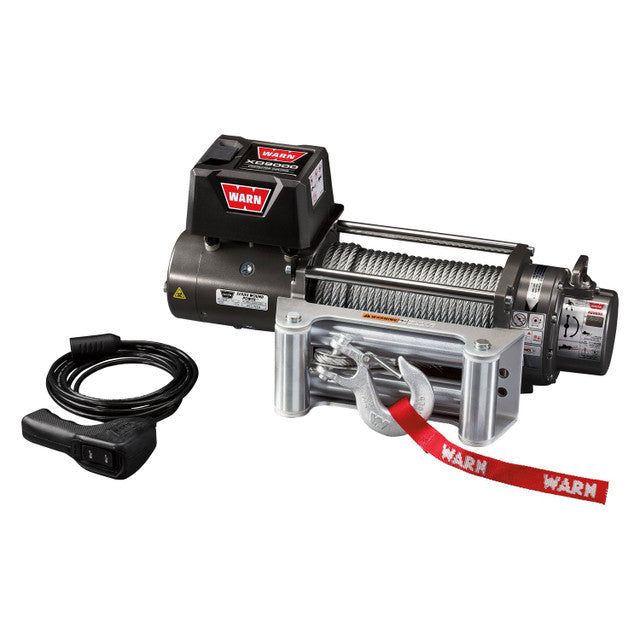

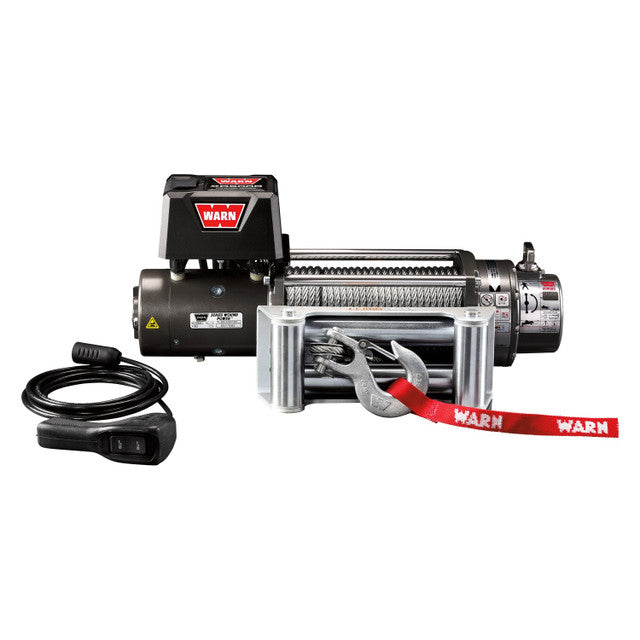

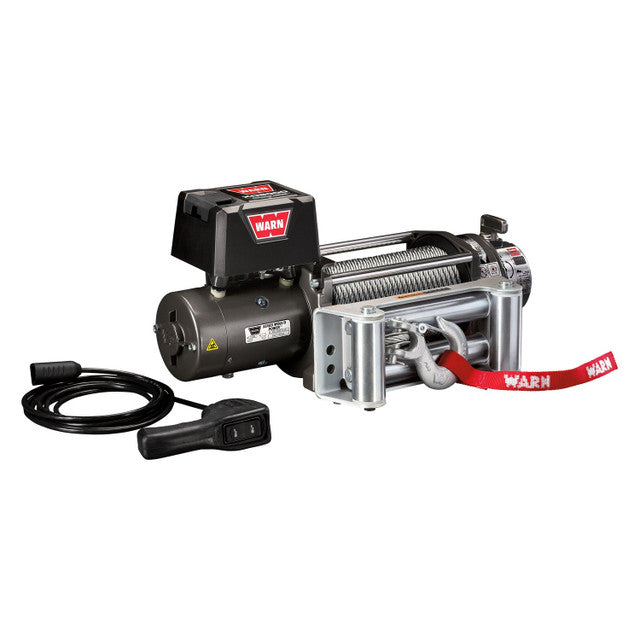

WARN XD9 9000lbs Compact Recovery Electric Winch 12V - Steel Wire Rope

$2,999.00

Notify me when back in stock

Why Buy From Adventure Warehouse?

✅ FAST SHIPPING - ORDERS SHIPPED AUS WIDE WITHIN 24 HOURS

✅ WE'RE HERE TO HELP - SPEAK TO A REAL PERSON

✅ EASY RETURNS - 30 DAYS, NO RETURN FEES

✅ PRICE GUARANTEE - NOBODY BEATS OUR PRICES

A long-time best seller, the compact, low-profile XD9 offers up a 9,000 lb. capacity, fast no-load retrieval speeds, and classic looks. Proven for years, these are among the most trusted winches in our lineup.

Features:

A durable 9,000 lb. winch with a compact body and separate control pack that allows you to use it in tight spaces. Comes with 100' of 5/16" wire rope.

  • Low-profile design and separate control box allows for a wide range of mounting options
  • Exclusive brake design provides superior control while winching
  • Durable 3-stage planetary geartrain for smooth, reliable, operation
  • Series-wound, high-speed motor provides fast line speed and strong pulls
  • Chip-resistant, powder-coated finish
  • Remote control with 12' (3.7m) lead.
  • Durable 5/16" (8mm) diameter galvanized steel wire rope.

Note: This Winch will require winch mount for proper installation.

Specifications:

TYPE Electric
MOUNT TYPE Vehicle Mounted
RECOMMENDED USE Vehicle Recovery
VOLTAGE 12 Volt
MOTOR HORSEPOWER 4.6 Horsepower
ELECTRICAL CONTROL TYPE Contactors
MOTOR TYPE Series Wound
THERMAL SHUTOFF No
DRIVE GEAR TYPE Planetary
GEAR REDUCTION RATIO 156:1
FREE SPOOLING Yes
BRAKE TYPE Mechanical Cone
LINE DIAMETER (IN) 5/16 Inch
LINE LENGTH (FT) 100 Feet
LINE MATERIAL Steel
FAIRLEAD TYPE Roller
CONFORMS TO J706 STANDARDS No
REMOTE TYPE Handheld Remote Switch
MOUNTING HOLE QUANTITY 4
OPERATION TYPE Automatic
MOUNTING PATTERN LENGTH (IN) 10 Inch
MOUNTING PATTERN WIDTH (IN) 4-1/2 Inch
INCLUDES MOUNTING HARDWARE No
COLOR Gray
MAX LINE PULL/ LINE SPEED 9000 Pound/ 3.9 Feet Per Minute
MAX AMP DRAW/ LINE PULL 478 Amp Draw/ 9000 Pound
