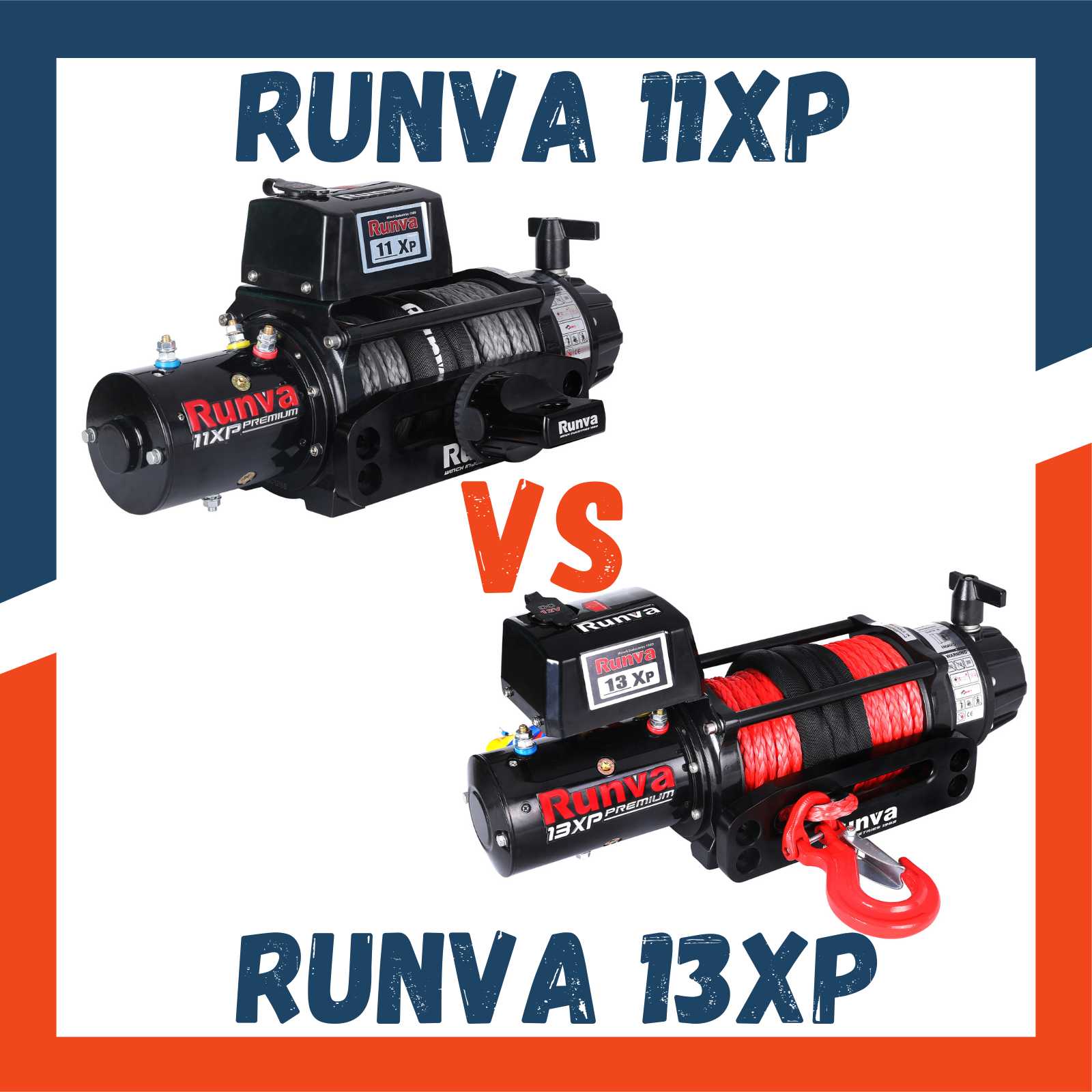

Runva 11XP Vs Runva 13xp - The two most popular Runva 4x4 Winches compared

You can't walk through a Bunnings carpark without seeing a Runva Winch mounted to the front of a 4x4 (seriously, have a look next time you’re there) and by far the two most popular models are the Runva 11xp and the Runva 13xp.

Both of these winches have been put to the test on Australia’s toughest tracks - whether it’s Cape York bog holes, Victorian High Country hill climbs, or sandy beaches - Runva Winches have saved the day time and time again.

Runva 13XP Vs Runva 11XP Overview

The Runva 11XP winch features a powerful 6.5 hp motor with an IP67 rating ensuring protection against dust and water ingress. It also comes with a novel braking system, which uses an automatic ratchet load-holding mechanism built into the gearbox for improved safety.

On the other hand, the Runva 13XP winch retains the reliability and quality of the 11XP but with a greater pulling capacity.

We have written a full breakdown of the features and specifications of both winches, however if you want to save time and skip to the conclusion, here are our main takeaways.

Here are the main differences we have found between the Runva 11XP and Runva 13XP:

PULLING CAPACITY - the Runva 13XP has a higher pulling capacity of 13000lb’s, making it a great choice for heavier 4x4’s or towing offroad

LINE SPEED - The Runva 11XP has a faster line speed for faster recoveries

SIZE - The Runva 13XP is a larger winch, so may not fit some smaller bullbars.  Check the fitment guide available on the Runva 13XP product page and measure your bullbar

PRICE - The Runva 11XP is generally cheaper, but sales may bring the Runva 13XP price down to make them very similar.

Please read our full breakdown of the differences between these two awesome winches.

Who Is Runva Winch?

Runva is a well-known brand in the 4x4 accessory industry, recognized for its quality and reliable winches. Runva winches have been featured on some of the best known 4x4 rigs in the country, including the 4WD 247 Youtube channel, who have used Runva Winches to get through some of the toughest, remote tracks in the world.

This company was established in 1997 and has been constantly evolving and improving its products.  They now make over 60 different winches catering to buggies and small 4x4’s, right up to offroad trucks and competition rigs.

Runva 11XP Vs Runva 13XP - Technical Specifications

Runva 11xp Premium 12v Winch Features

The Runva 11xp  is a powerful electric winch designed for large 4wd vehicles like Patrols and Landcruisers. It boasts a strong 11,000 lbs (4.9 tons) line pull with a 12-volt winch motor. (also available in 24V)  One of the key features of the 11XP is the use of an 11mm Dyneema synthetic rope, which is lighter and more flexible than traditional steel cable.

The 11XP is equipped with a reliable solenoid and a durable gearbox, ensuring smooth operation even under challenging conditions. When it comes to compatibility, this winch fits most winch compatible bull bars.

Runva 11XP Premium 12v Winch Specifications:

• Motor: 12V electric
• Line Pull: 11,000 lbs
• Rope: 10mm Dyneema Synthetic
• Gearbox: Heavy Duty
• Solenoid: Weather-resistant

Runva 11xp Pros and Cons

Pros:

• Strong pulling power for large 4wd vehicles
• Lightweight and flexible synthetic rope
• Weather-resistant solenoid
• Compatible with most bull bars
• Faster line speed

Cons:

• May not be ideal for vehicles with heavy towing needs

Runva 13xp Premium Winch Features

The Runva 13XP is the heavy lifter counterpart with an increased line pull of 13,000 lbs (5.8 tons). Built to suit large vehicles and those carrying a heavy load or towing trailers, this electric winch comes with a choice of either 12v or 24v winch motor.

The 13XP uses a durable synthetic rope with a thimble and comes with full IP67 protection, ensuring its reliability in various weather conditions. Keep in mind that your bull bar needs to be compatible with the 13XP's larger size.

Runva 13XP Premium 12v Winch Specifications:

• Motor: 12V or 24V electric
• Line Pull: 13,000 lbs
• Rope: 11mm Synthetic with thimble
• Gearbox: Heavy Duty
• Solenoid: Weather-resistant (IP67)

Runva 13xp Pros and Cons

Pros:

• Higher pulling capacity for heavy vehicles and towing
• Choice of 12V or 24V winch motor
• Full IP67 protection
• Strong synthetic rope with a thimble

Cons:

• Slightly larger size compared to the 11XP, may not fit smaller bullbars
• Slower line speed due to higher gear ratios

Runva 11XP and 13XP Performance and Reliability

Winching Power and Efficiency

The Runva 11XP Premium and the Runva 13XP Premium are two popular choices for off-road enthusiasts. The 11XP and 13XP are quite similar in design and functionality. Both winches are available in 12V or 24V and deliver impressive winching power and efficiency.

• Runva 11XP Premium: Comes with a single-stage planetary gear system and has a line pull of up to 11,000 lbs (4,989 kg). The winch has a maximum load line speed of 5.8 ft/min (1.4 m/min) at full load capacity of 11000lb - but will be much faster with lighter loads.


• Runva 13XP Premium: Equipped with a two-stage planetary gear system and offers a line pull of up to 13,000 lbs (5,897 kg). This winch features a maximum load line speed of 4.6 ft/min (1.4 m/min) at full load capacity of 13000lb - but will be much faster with lighter loads.


Both winches provide the user with an efficient and powerful tool when working in challenging situations. They come with a handheld remote and a wireless remote control for easy operation.

Durability in Challenging Environments

Runva 11XP and 13XP Premium winches are built to be reliable and durable in harsh off-road conditions. Their construction features heavy-duty materials and an IP67 rating for dust and water resistance. This waterproofing helps to ensure that the winches can perform optimally in various environments.

Despite their similarities, the Runva 13XP has an edge in terms of its ability to handle heavier loads. This makes it a more suitable choice for larger vehicles or more demanding recovery tasks. Yet, the Runva 11XP is still a dependable winch for most off-road situations.

In conclusion, both the Runva 11XP and the 13XP Premium winches provide excellent performance and reliability. With their high winching power and efficient line speed, alongside their durability in challenging environments, they are ideal choices for off-road enthusiasts.

Runva 11XP Vs Runva 13XP Price

If you're on the hunt for a great winch without breaking the bank, the Runva 11xp and 13xp are both great options. They're both really good deals, priced similarly to other big-name brands like Warn or Carbon. The Runva 11xp is generally the cheaper one of the two, by around $150.

Make sure you check the price of both winches when you are ready to purchase, we keep[ prices on both of these winches as low as possible, and the RUnva 13xp is often very close in price to the Runva 11xp, meaning you can upgrade to the higher pulling capacity of the Runva 13xp for only a few dollars.

Runva 13XP Vs Runva 11XP Technical Specifications

When comparing the Runva 11XP and Runva 13XP winches, it is important to consider their technical specifications.

Motor and Pulling Power

The Runva 11XP is powered by a 5.5 HP (4.1 kW) motor, while the Runva 13XP features a more potent 7.6 HP (5.65 kW) motor. The 13XP's stronger motor translates to greater pulling power.

The Runva 11XP has a maximum line pull of 11,000 lbs (4,990 kg), whereas the Runva 13XP has a higher maximum line pull at 13,000 lbs (5,897 kg).

Gear Ratio and Line Speed

Another factor to consider when comparing these two winches is the line speed and performance, here are the line speed figures for each winch, showing how fast it will perform at different load capacities:

Runva 11XP Performance

 Runva 13XP Performance

While the Runva 13XP can pull a heavier load, the Runva 11XP winch is faster, so if you don’t need the extra load capacity, the faster line speed is a big advantage to the 11XP.

Control Options

Both the Runva 11XP and 13XP winches come with wired and wireless remote control options, providing convenience and flexibility for operators. The winches allow for easy operation from a distance, ensuring safety during recovery operations.

Cable and Drum Size

When it comes to cable and drum size, both winches are very similar. The Runva 11XP comes standard with 10mm rope, while the 13XP come standard with an 11 mm diameter synthetic rope. The synthetic rope is durable, lightweight, and less likely to cause injury in case of cable failure. Additionally, both winches have a drum size of 63.5 mm in diameter and 217mm in length.

Runva Warranty and After-Sales Support

Runva winches are not only known for their reliability but also their exceptional after-sales support. The company offers a lifetime mechanical warranty and a 5-year electrical warranty on their premium winches, including the 11XP and 13XP models. This warranty ensures that users can trust their investment and the winch's durability.

Customer service is one of the key factors to consider when purchasing a winch. Runva has a reputation for providing prompt and efficient customer service to its clients.

Their dedicated service team includes professional managers and technicians who are committed to helping users with any concerns or issues related to their winches.

Runva 11XP Vs Runva 13XP Conclusion

In conclusion, the Runva 11XP and Runva 13XP are both great options for Aussie 4x4 rigs, and the main points to consider are:

PULLING CAPACITY - the Runva 13XP has a higher pulling capacity of 13000lb’s, making it a great choice for heavier 4x4’s or towing offroad

LINE SPEED - The Runva 11XP has a faster line speed for faster recoveries

SIZE - The 13XP is a larger winch, so may not fit some smaller bullbars.  Check the fitment guide available on the Runva 13XP product page and measure your bullbar

PRICE - The Runva 13XP is generally cheaper, but sales may bring the RUnva 13XP price down to make them very similar.

If you have any questions about either of these winches, or any of the winches in our range please Contact Us to speak to one of our 4x4 Winch experts.
